OPA211IDGKT ,Operational Amplifier, OP Amp IC - TI

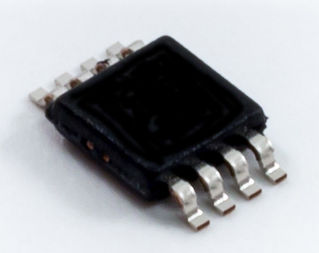

The pictures are for reference only, and the specific specifications can be found in the product manual.
Popularity Score
139 points
-
Part NoOPA211IDGKT
-
ManufacturerTI
-
ChipWorker Part#CW18737644
-
CategoryOperational Amplifier, OP Amp IC
-
PackageVSSOP-8
-
DescriptionOP Amp Single GP R-R O/P ±18V/36V 8Pin VSSOP T/R
-
DocumentationDatasheet
-
Ships fromMoscow
-
НаличиеIn Stock
-
Estimated Price$ 8.55
Payment Methods and Delivery
{{ estimate }}
Buy OPA211IDGKT
Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.
Real stock check
Best price from distributors
Engineer support
OPA211IDGKT Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{currencySymbol}}{{ ToEffectiveNum(toDisplay(priceList.price, activeCurrency)) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}xx
{{ low_stock_text }}
|
1 |
{{weeks_text}}
|
{{ formatQuantity(priceList.quantity) }}
{{currencySymbol}}{{ ToEffectiveNum(toDisplay(priceList.price, activeCurrency)) }}
{{viewMore}}
|
{{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
|
Chipworker
|
{{noList.partNo}}
{{noList.mfr}}
|
{{stockAvailability}}
{{ search_item }}
|
{{moq}} | 1 | 6 - 8 {{delivery_date}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),1)}} |
|
|||||||
{{ apiText }}{{ apiTime }}(UTC+8)
Update Data
Chipworker Certification
11+ years sourcing experience
1000+ russia customers
ISO certified supplier
Support small MOQ
*Photos of Our Actual 800 m² Warehouse
OPA211IDGKT Specifications
Consulting Engineer >>| Attribute | Attribute Value | |
|---|---|---|
| Part Number | OPA211IDGKT | |
| Manufacturer | TI | |
| ChipWorker Part# | CW18737644 | |
| Category | Operational Amplifier, OP Amp IC | |
| Documentation | Datasheet | |
| Mounting Style | Surface Mount | |
| Number of Pins | 8 Pin | |
| Case/Package | VSSOP-8 | |
| Output Current | 30 mA | |
| Supply Current | 3.6 mA | |
| Number of Circuits | 1 Circuit | |
| Number of Channels | 1 Channel | |
| Common Mode Rejection Ratio | 110 dB | |
| Input Offset Drift | 150 nV/K | |
| Slew Rate | 27.0 V/μs | |
| Gain Bandwidth Product | 80 MHz | |
| Thermal Shutdown | No | |
| Input Offset Voltage | 0.125 mV | |
| Input Bias Current | 60 nA | |
| Operating Temperature (Max) | 125 ℃ | |
| Operating Temperature (Min) | -40 ℃ | |
| Gain Bandwidth | 80 MHz | |
| Minimum CMRR Range | 110 dB | |
| Supply Voltage | 5V ~ 36V | |
| expand all | ||
| Size-Length | 3.1 mm | |
| Size-Width | 3.1 mm | |
| Size-Height | 0.95 mm | |
| Operating Temperature | -40℃ ~ 125℃ | |
| Product Lifecycle Status | Active | |
| Packaging | Tape & Reel (TR) | |
| RoHS | RoHS Compliant | |
| Lead-Free Status | Lead Free |
Similar & Replacement Parts
Similar products
Product Description
- DESCRIPTION
- The OPA211 series achieves very low 1.1nV/√Hz noise density with a supply current of only 3.6mA. It also offers rail-to-rail output swing, which helps to maximize dynamic range. The OPA211 series’ extremely low voltage and current noise, high speed and wide output swing make it an excellent choice as a loop filter amplifier in PLL applications.
- FEATURES
- • LOW-VOLTAGE NOISE: 1.1nV/√Hz at 1kHz
- • 100nVPP INPUT VOLTAGE NOISE, 0.1Hz–10Hz
- • LOW OFFSET VOLTAGE: 100µV (max)
- • LOW OFFSET VOLTAGE DRIFT: 0.2µV/°C (typ)
- • LOW SUPPLY CURRENT: 3.6mA/Ch
- • UNITY GAIN STABLE
- • GAIN BANDWIDTH PRODUCT: 80MHz (G = 100)
- • SLEW RATE: 27V/µs
- • WIDE SUPPLY RANGE: ±2.25V to ±18V, +4.5V to +36V
- • RAIL-TO-RAIL OUTPUT
- • OUTPUT CURRENT: 30mA
- • SHUTDOWN: 20µA (max)
- • AVAILABLE IN TINY DFN-8 (3x3mm), MSOP-8, SO-8
- APPLICATIONS
- • PLL LOOP FILTER
- • LOW-NOISE, LOW-POWER SIGNAL PROCESSING
- • HIGH-PERFORMANCE ADC DRIVERS
- • HIGH-PERFORMANCE DAC OUTPUT AMPLIFIER
- • ACTIVE FILTERS
- • LOW-NOISE INSTRUMENTATION AMPS
- • ULTRASOUND AMPLIFIERS
- • PROFESSIONAL AUDIO PREAMPLIFIERS
- • LOW-NOISE FREQUENCY SYNTHESIZERS
- • INFRARED DETECTOR AMPLIFIERS
- • HYDROPHONE AMPLIFIERS
- • MEDICAL
