OPA445ADDA ,Operational Amplifier, OP Amp IC - TI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

158 points

Part No

OPA445ADDA
Manufacturer

TI
ChipWorker Part#

CW13518859
Category

Operational Amplifier, OP Amp IC
Package

SO-8
Description

TEXAS INSTRUMENTS OPA445ADDA Operational Amplifier, Single, 1 Amplifier, 2MHz, 15V/µs, ± 10V to ± 45V, SOIC, 8Pins
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 4.2

Buy OPA445ADDA

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

OPA445ADDA Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

OPA445ADDA Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	OPA445ADDA
Manufacturer	TI
ChipWorker Part#	CW13518859
Category	Operational Amplifier, OP Amp IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SO-8
Supply Current	4.2 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Common Mode Rejection Ratio	80 dB
Input Offset Drift	10.0 µV/K
Bandwidth	2 MHz
Slew Rate	15.0 V/μs
Gain Bandwidth Product	2 MHz
Input Offset Voltage	1.5 mV
Input Bias Current	10 pA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Gain Bandwidth	2 MHz
Minimum CMRR Range	80 dB
	expand all
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.55 mm
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15

Similar & Replacement Parts

Similar products

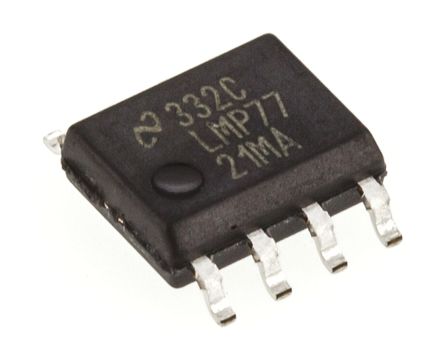

LMP7721MA/NOPB

1.95 $/шт.

120-5

Wakefield Engineering

22.94 $/шт.

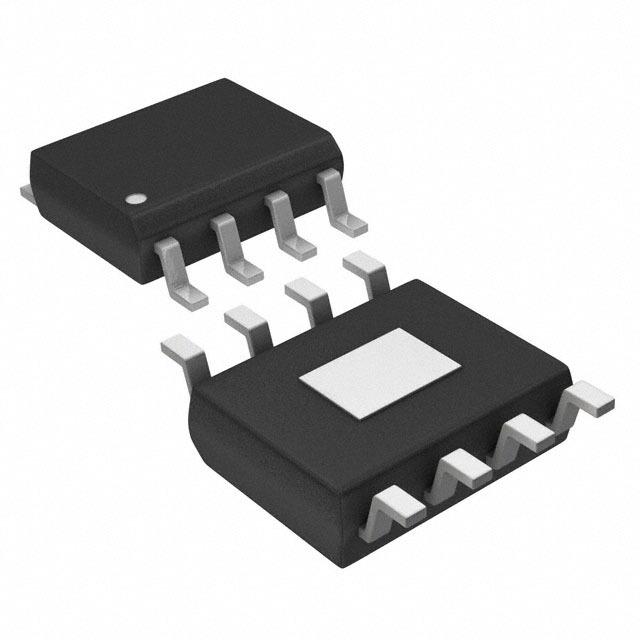

OPA445ADDAR

9.39 $/шт.

Product Description

The OPA445 is a monolithic operational amplifier capable of operation from power supplies up to ±45V and output currents of 15mA. It is useful in a wide variety of applications requiring high output voltage or large common-mode voltage swings.
The OPA445"s high slew rate provides wide powerbandwidth response, which is often required for high-voltage applications. FET input circuitry allows the use of high-impedance feedback networks, thus minimizing their output loading effects. Laser trimming of the input circuitry yields low input offset voltage and drift.
The OPA445 is available in standard pinout TO-99, DIP-8, and SO-8 surface-mount packages as well as an SO-8 PowerPAD package for reducing junction temperature. It is fully specified from -25°C to +85°C and operates from -55°C to +125°C. A SPICE macromodel is available for design analysis (from www.ti.com).
