P6KE24CA - Littelfuse

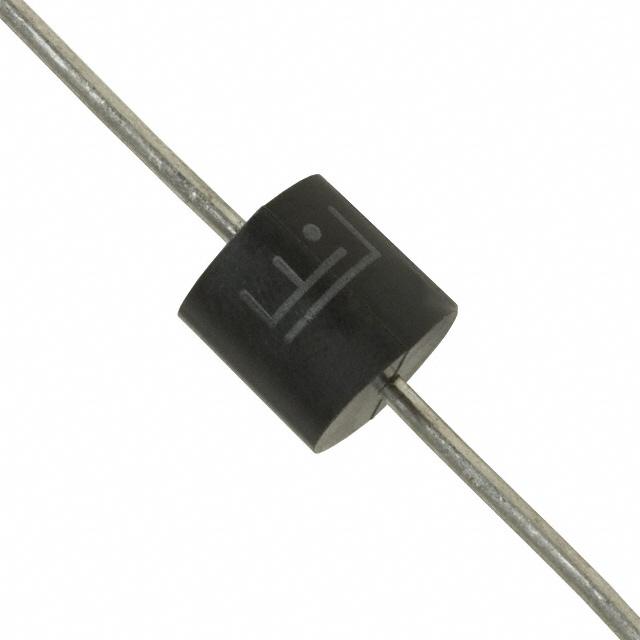

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

P6KE24CA
Manufacturer

Littelfuse
ChipWorker Part#

CW5128300
Category

Diode
Package

DO-15
Description

Diode; 18.4A; 22.8V (Min.) @ 1mA; 5uA @ 20.5V; 100A (Max.); DO-15
Documentation

Datasheet

P6KE24CA Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

P6KE24CA Specifications

Attribute	Attribute Value

Part Number	P6KE24CA
Manufacturer	Littelfuse
ChipWorker Part#	CW5128300
Category	Diode
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-15
Voltage Rating (DC)	24.0 V
Current Rating	18.4 A
Power Rating	600 W
Breakdown Voltage	22.8 V
Number of Positions	2 Position
Power Dissipation	600 W
Clamping Voltage	33.2 V
Test Current	1 mA
Max Breakdown Voltage	25.2 V
Forward Current	18.4 A
Peak Pulse Power	600 W
Min Breakdown Voltage	22.8 V
Reverse Breakdown Voltage	22.8 V
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	-55℃ ~ 175℃
Junction Temperature (Max)	175 ℃
	expand all
Size-Length	7.6 mm
Size-Diameter	3.60 mm
Operating Temperature	-55℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

P6KE Series Silicon Avalanche Diodes
* Glass passivated chip junction in DO-15 package
* Uni-directional and bi-directional
* Excellent clamping capability
* Low zener impedance
The P6KE Series is designed specifically to protect sensitive electronics equipment from voltage transients induced by lightning and other transient voltage events. These devices are ideal for the protection of I/O interfaces, Vcc bus and other vulnerable circuits used in telecom, computer, industrial and consumer electronic applications.
