OPA842IDBVR - TI

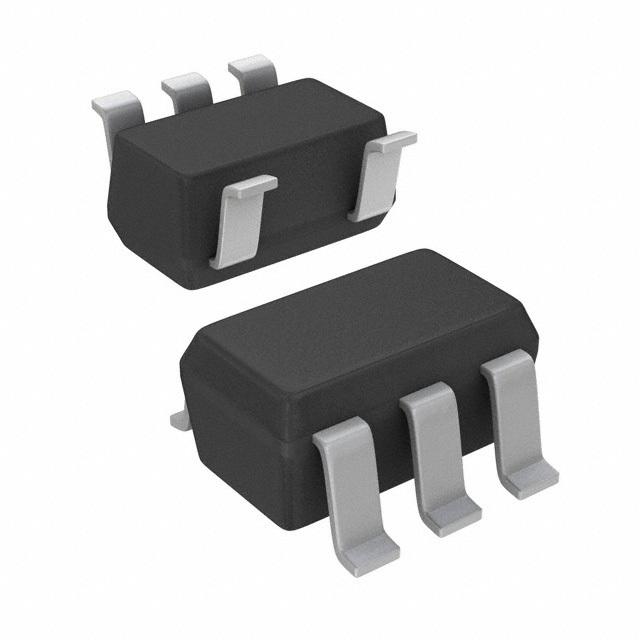

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

OPA842IDBVR
Manufacturer

TI
ChipWorker Part#

CW56942393
Category

Operational Amplifier, OP Amp IC
Package

SOT-23-5
Description

TEXAS INSTRUMENTS OPA842IDBVR Operational Amplifier, Single, 1 Amplifier, 200MHz, 400V/µs, ± 5V to ± 6V, SOT-23, 5Pins
Documentation

Datasheet

OPA842IDBVR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

OPA842IDBVR Specifications

Attribute	Attribute Value

Part Number	OPA842IDBVR
Manufacturer	TI
ChipWorker Part#	CW56942393
Category	Operational Amplifier, OP Amp IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-23-5
Supply Current	20.2 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Common Mode Rejection Ratio	85 dB
Input Offset Drift	4.00 µV/K
Bandwidth	200 MHz
Slew Rate	400 V/μs
Gain Bandwidth Product	200 MHz
Input Offset Voltage	300 µV
Input Bias Current	20 µA
Available Channels	S
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	200 MHz
Minimum CMRR Range	85 dB
Supply Voltage	10V ~ 12V
	expand all
Size-Length	2.9 mm
Size-Width	1.6 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15

Product Description

Voltage Feedback Amplifier 1 Circuit SOT-23-5
