P0420NLT - Pulse Electronics

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

P0420NLT
Manufacturer

Pulse Electronics
ChipWorker Part#

CW1427007
Category

Filter
Package

LCCI-50
Description

Pulse PO-xxx Series Wire-wound SMD Inductor 1.32mH 35% 3.3A Idc
Documentation

Datasheet

P0420NLT Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

P0420NLT Specifications

Attribute	Attribute Value

Part Number	P0420NLT
Manufacturer	Pulse Electronics
ChipWorker Part#	CW1427007
Category	Filter
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	LCCI-50
Current Rating	3.3 A
Inductance	1.32 mH
Inductance Tolerance	±35 %
DC Resistance (DCR)	0.06 Ω
Current Rating (Max)	3.3 A
Operating Temperature (Max)	120 ℃
Operating Temperature (Min)	-40 ℃
Resistance (DC Max)	60 mΩ
	expand all
Size-Length	19.56 mm
Size-Width	17.02 mm
Size-Height	9.91 mm
Weight	4.6 g
Operating Temperature	-40℃ ~ 120℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99

Product Description

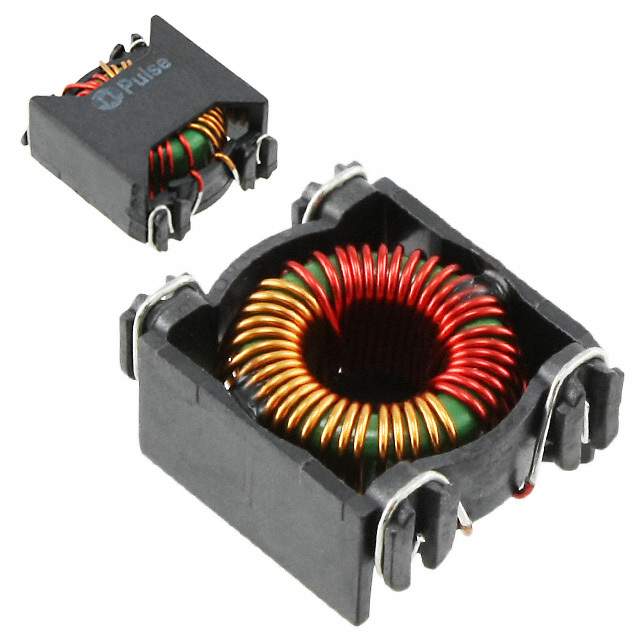

The P0420NLT is a SMT Common Mode Choke designed for DC/DC converter applications.
Solutions based on impedance, size and current
1000Vrms Dielectric strength
