PB134024 ,Power Relay - TE Connectivity

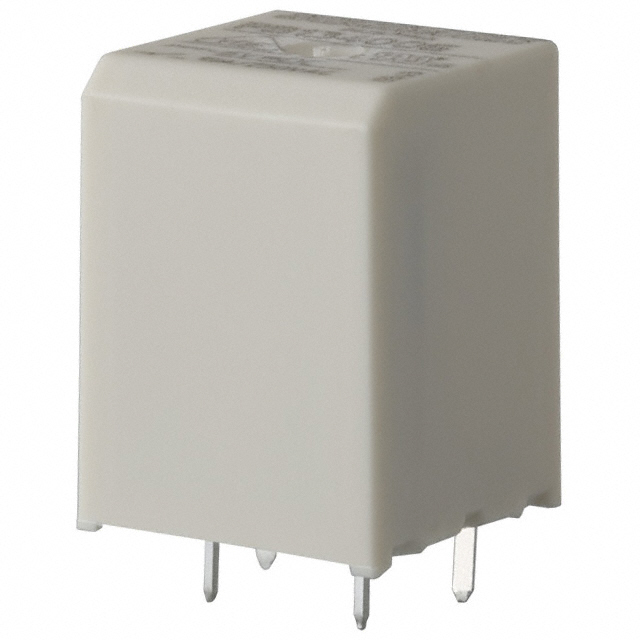

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

50 points

Part No

PB134024
Manufacturer

TE Connectivity
ChipWorker Part#

CW61828536
Category

Power Relay
Package

-
Description

POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.015A (COIL), 24VDC (COIL), 360mW (COIL), 10A (CONTACT), 100VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT
Documentation

Datasheet
Ships from

Moscow
Наличие

910 pcs In Stock
Estimated Price

$ 1.23

Buy PB134024

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

PB134024 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

PB134024 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	PB134024
Manufacturer	TE Connectivity
ChipWorker Part#	CW61828536
Category	Power Relay
Documentation	Datasheet
Mounting Style	Through Hole
Case/Package	-
Input Voltage (DC)	24.0 V
Contacts Type	SPST-NO
voltage rating	2.40 V
Contact Current Rating	10.0 A
Coil Voltage	24 VDC
Coil Current	15 mA
Coil Power (DC)	360 mW
Coil Resistance	1.6 kΩ
Coil Voltage (DC)	24 V
Coil Power	360 mW
Input Power (Max)	2.5 KVA
Switching Current (Max)	15 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
	expand all
Size-Length	15 mm
Size-Width	20 mm
Size-Height	20 mm
Contact Material	Silver Nickel
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ELV Compliant	Compliant
HTS Code	8536410050
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

Power Relay 24VDC 15A SPST-NO(15x15x20)mm THT
Product Highlights
PB Series
Contact Arrangement = 1 Form A, SPST-NO, 1 N/O
Contact Current Rating = 10 Amps.
Monostable Coil Magnetic System
Without Coil Suppression Diode
