PBSS4041PZ - NXP

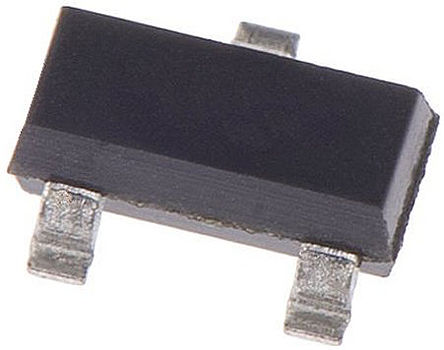

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

PBSS4041PZ
Manufacturer

NXP
ChipWorker Part#

CW53470723
Category

BJT Transistor, BJT
Package

SOT-223
Description

SC-73 PNP 60V 5.7A
Documentation

Datasheet

PBSS4041PZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

PBSS4041PZ Specifications

Attribute	Attribute Value

Part Number	PBSS4041PZ
Manufacturer	NXP
ChipWorker Part#	CW53470723
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	SOT-223
Number of Positions	4 Position
Polarity	PNP
Power Dissipation	770 mW
Breakdown Voltage (Collector to Emitter)	60 V
Continuous Collector Current	5.7A
hFE Min	120
DC Current Gain (hFE)	300
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2600 mW
	expand all
Size-Length	6.7 mm
Size-Width	3.7 mm
Size-Height	1.8 mm
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

The PBSS4041PZ is a 5.7A PNP breakthrough-in small signal (BISS) Transistor in a medium power surface-mount plastic package with increased heat-sink.
Very low collector-emitter saturation voltage VCEsat
High collector current capability IC and ICM
High collector current gain (hFE) at high IC
High energy efficiency due to less heat generation
Smaller required printed-circuit board (PCB) area than for conventional transistors
AEC-Q101 qualified
NPN complement is PBSS4041NZ
PB4041PZ Marking code
