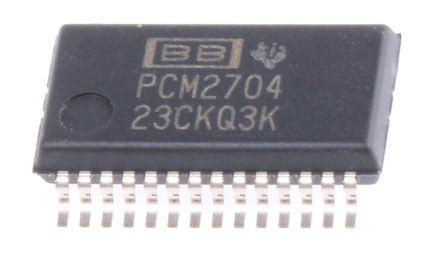

PCM2704DB ,Digital to Analog, DAC IC - TI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

77 points

Part No

PCM2704DB
Manufacturer

TI
ChipWorker Part#

CW36330953
Category

Digital to Analog, DAC IC
Package

SSOP-28
Description

Digital to Analog Converter, 16Bit, 48KSPS, Serial, 3V to 3.6V, 4.35V to 5.25V, SSOP, 28Pins
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 1.41

Buy PCM2704DB

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

PCM2704DB Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

PCM2704DB Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	PCM2704DB
Manufacturer	TI
ChipWorker Part#	CW36330953
Category	Digital to Analog, DAC IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	SSOP-28
Supply Voltage (DC)	3.30 V, 5.00 V
Number of Outputs	2 Output
Supply Current	35.0 mA
Number of Channels	2 Channel
Number of Positions	28 Position
Number of Bits	16 Bit
Power Dissipation	0.242 W
Sample Rate	48 ksps
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Power Dissipation (Max)	242 mW
	expand all
Size-Length	10.2 mm
Size-Width	5.3 mm
Size-Height	1.95 mm
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

The PCM2704DB is a 1-chip USB stereo audio Digital-to-analog Converter (DAC) with USB-compliant full-speed protocol controller and S/PDIF. The USB-protocol controller works with no software code, but USB descriptors can be modified in some parts through the use of an external ROM, SPI or on request. The modification of the USB descriptor through external ROM or SPI must comply with USB-IF guidelines and the vendor ID must be your own ID as assigned by the USB-IF. The PCM2704 employs SpAct architecture, TIs unique system that recovers the audio clock from USB packet data. On-chip analog PLLs with SpAct enable playback with low clock jitter.
On-chip USB interface
No need of dedicated device driver
With full-speed transceivers
Fully compliant with USB 1.1 specification
Partially programmable descriptors
Adaptive isochronous transfer for playback
Bus-powered or self-powered operation
On-chip clock generator with single 12MHz clock source
Analog performance at 5V
Suspend flag
S/PDIF Out with SCMS
External ROM interface
Green product and no Sb/Br
