PDTC144EU - NXP

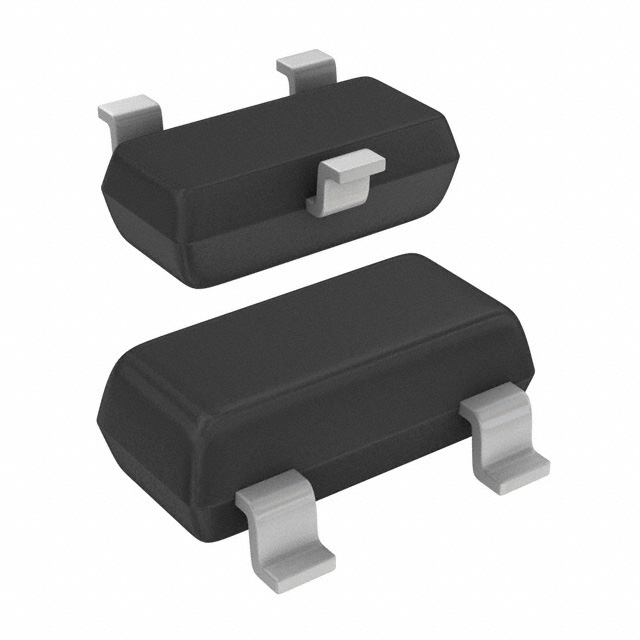

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

PDTC144EU
Manufacturer

NXP
ChipWorker Part#

CW99624406
Category

BJT Transistor, BJT
Package

SOT-323
Description

SC-70 NPN 50V 100mA
Documentation

Datasheet

PDTC144EU Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	-	6 - 8 {{delivery_date}}

PDTC144EU Specifications

Attribute	Attribute Value

Part Number	PDTC144EU
Manufacturer	NXP
ChipWorker Part#	CW99624406
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-323
Polarity	NPN
Power Dissipation	200 mW
Breakdown Voltage (Collector to Emitter)	50 V
Continuous Collector Current	100mA
DC Current Gain (hFE)	80
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
	expand all
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Unknown
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2014/12/17

Product Description

DESCRIPTION
PNP resistor-equipped transistor (see “Simplified outline, symbol and pinning”for package details).
FEATURES
• Built-in bias resistors
• Simplified circuit design
• Reduction of component count
• Reduced pick and place costs.
APPLICATIONS
• General purpose switching and amplification
• Inverter and interface circuits
• Circuit driver.
