PE014006 ,Power Relay - TE Connectivity

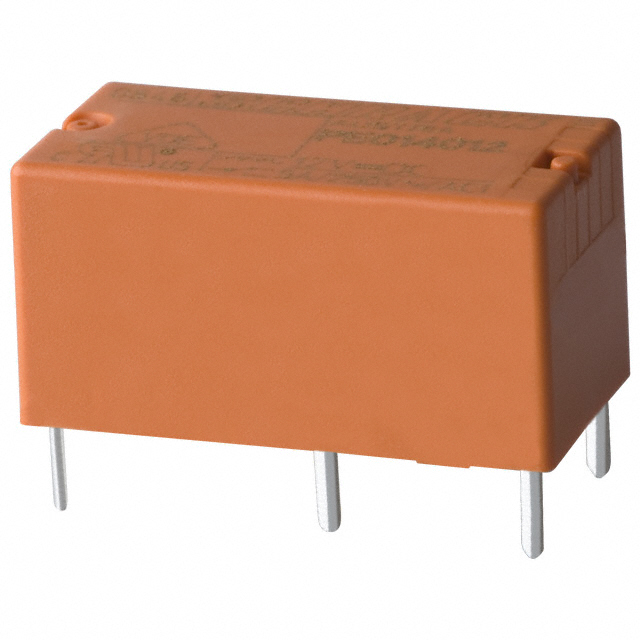

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

65 points

Part No

PE014006
Manufacturer

TE Connectivity
ChipWorker Part#

CW26285682
Category

Power Relay
Package

200
Description

Electromechanical Relay 6VDC 172Ω 5A SPDT (( 20mm 10mm 10mm)) THT Miniature PCB Relay
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 3.52

Buy PE014006

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

PE014006 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

PE014006 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	PE014006
Manufacturer	TE Connectivity
ChipWorker Part#	CW26285682
Category	Power Relay
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	5 Pin
Case/Package	200
Voltage Rating (AC)	400 V
Current Rating	5 A
Input Voltage (DC)	6.00 V
Contacts Type	SPDT
voltage rating	600 mV
Contact Current Rating	5 A
Coil Voltage	6 VDC
Coil Current	34.8 mA
Coil Power (DC)	200 mW
Coil Resistance	172 Ω
Current Rating (Max)	5 A
Coil Voltage (DC)	6 V
Input Power (Max)	1.25 KVA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	6 VDC
	expand all
Size-Length	20 mm
Size-Width	10 mm
Size-Height	10 mm
Contact Material	Silver Nickel
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ELV Compliant	Compliant
