PIC16F716 - Microchip

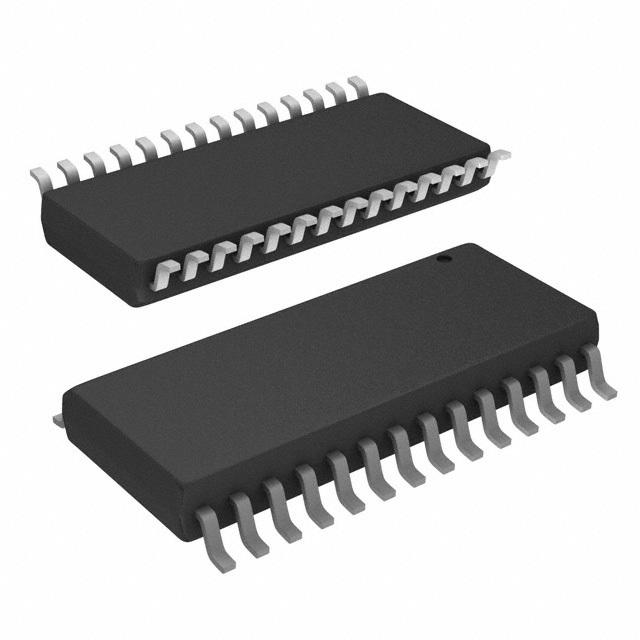

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

PIC16F716
Manufacturer

Microchip
ChipWorker Part#

CW181332966
RoHS

Lead free / RoHS Compliant
Description

8Bit Flash-based Microcontroller with A/D Converter and Enhanced Capture/Compare/PWM
Documentation

Datasheet

PIC16F716 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

PIC16F716 Specifications

Attribute	Attribute Value

Part Number	PIC16F716
Manufacturer	Microchip
ChipWorker Part#	CW181332966
Documentation	Datasheet
Case/Package	SOIC-18
	expand all
RoHS	RoHS Compliant

Product Description

Microcontroller Core Features:
• High-performance RISC CPU
• Only 35 single-word instructions to learn
\- All single-cycle instructions except for program branches which are two-cycle
• Operating speed: DC – 20 MHz clock input
DC – 200 ns instruction cycle
• Interrupt capability (up to 7 internal/external interrupt sources)
• 8-level deep hardware stack
• Direct, Indirect and Relative Addressing modes
Special Microcontroller Features:
• Power-on Reset (POR)
• Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
• Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
• Dual level Brown-out Reset circuitry
\- 2.5 VBOR (Typical)
\- 4.0 VBOR (Typical)
• Programmable code protection
• Power-Saving Sleep mode
• Selectable oscillator options
• Fully static design
• In-Circuit Serial Programming™ (ICSP™)
CMOS Technology:
• Wide operating voltage range:
\- Industrial: 2.0V to 5.5V
\- Extended: 3.0V to 5.5V
• High Sink/Source Current 25/25 mA
• Wide temperature range:
\- Industrial: -40°C to 85°C
\- Extended: -40°C to 125°C
