PVT322 - Infineon

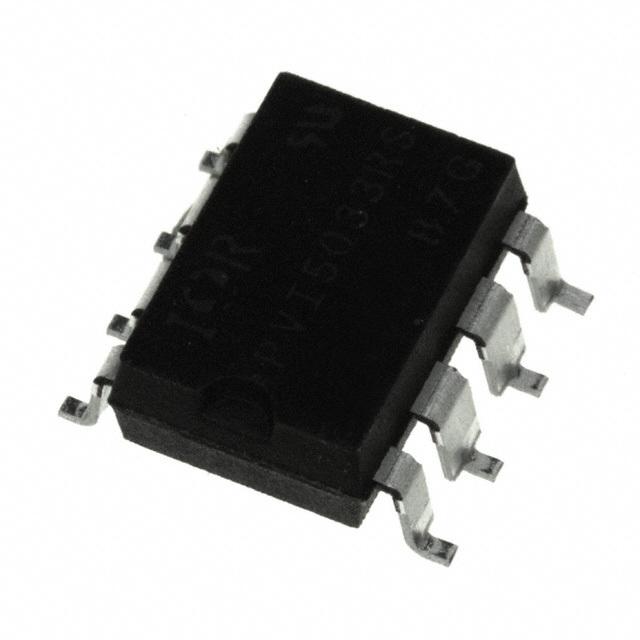

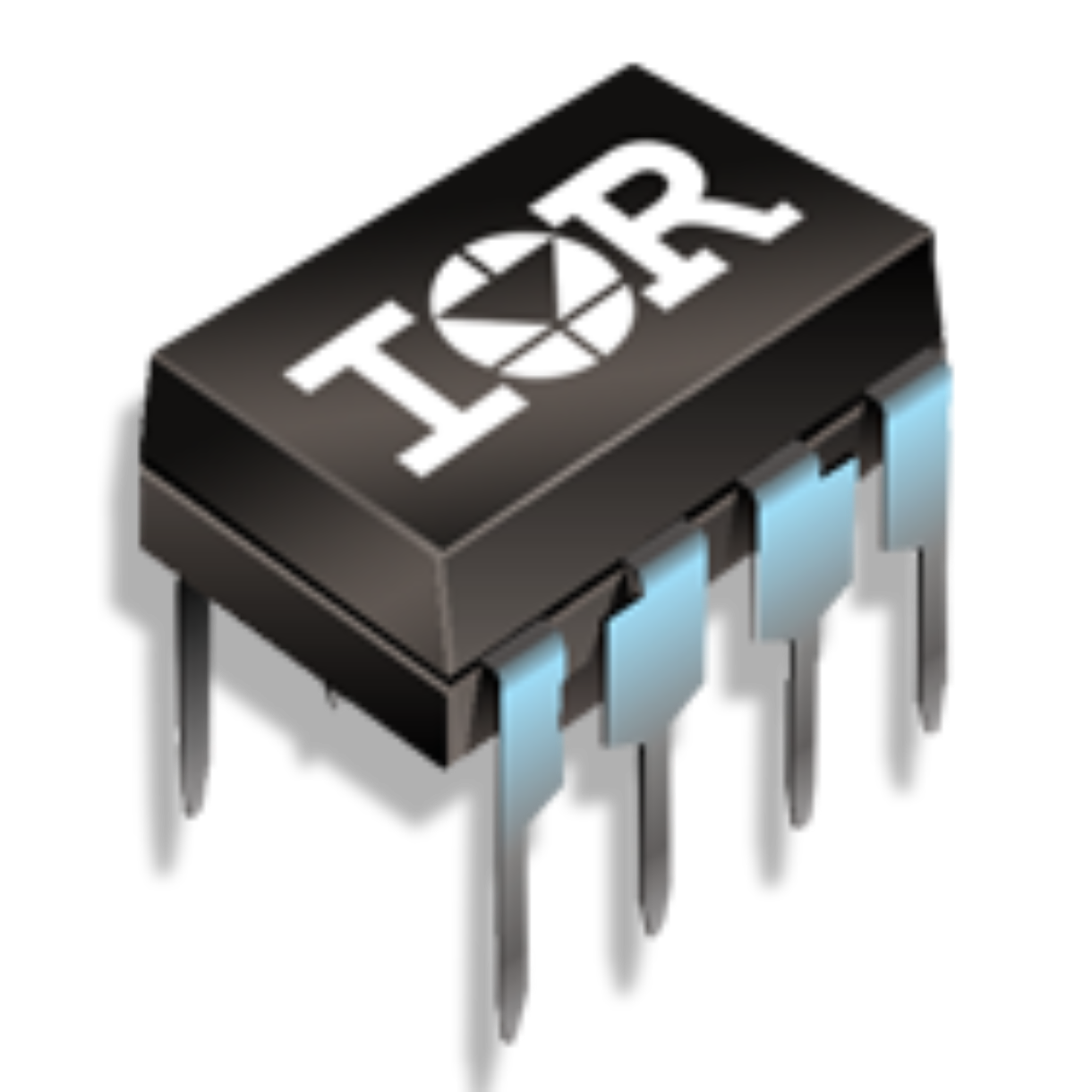

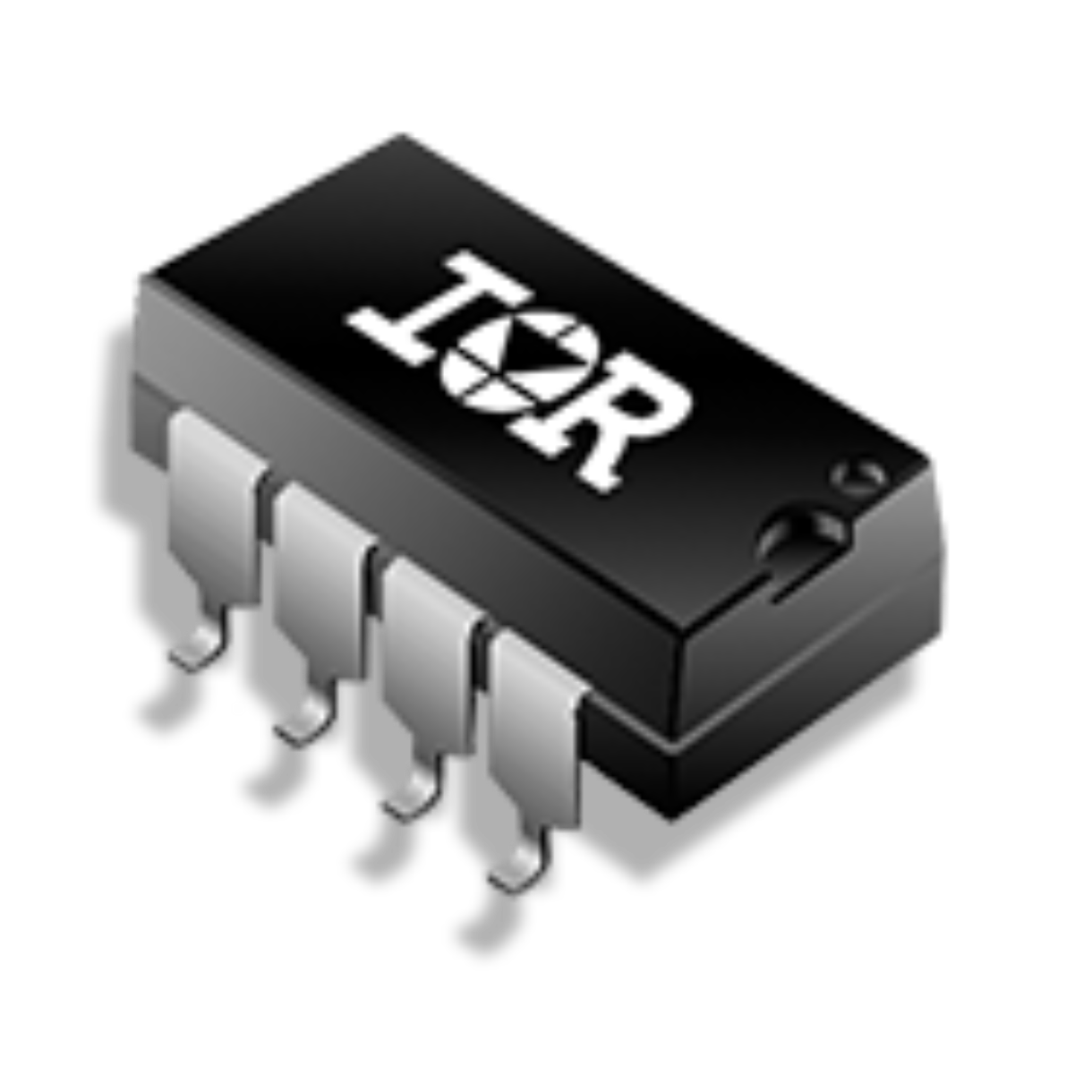

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

PVT322
Manufacturer

Infineon
ChipWorker Part#

CW120316166
Category

Solid State Relay
Package

DIP-8
Description

Relay SSR 25mA DC-IN 0.17A 250V AC-DC-OUT 8Pin PDIP Tube
Documentation

Datasheet

PVT322 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

PVT322 Specifications

Attribute	Attribute Value

Part Number	PVT322
Manufacturer	Infineon
ChipWorker Part#	CW120316166
Category	Solid State Relay
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Output Voltage	250 V
Output Current	≤170 mA
Contacts Type	DPST-NO
Load Current	170 mA
Part Family	PVT322
Output Voltage (Max)	250 V
Input Current (Min)	25 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	1.2 VDC
	expand all
Size-Length	9.39 mm
Size-Width	6.47 mm
Size-Height	3.93 mm
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead

Product Description

PVT Photovoltaic 250 V 0.17 A 10 Ohm DPST (2 Form A) Solid State Relay - DIP-8
