RE032012 - TE Connectivity

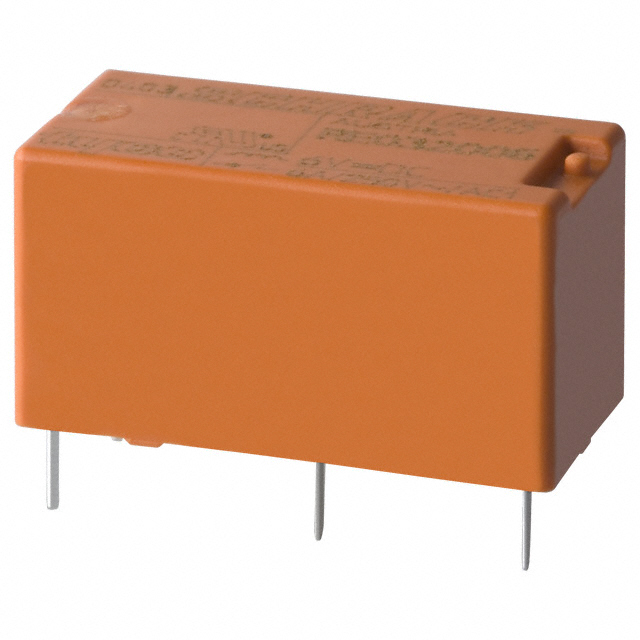

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

RE032012
Manufacturer

TE Connectivity
ChipWorker Part#

CW34378758
Category

Power Relay
Package

-
Description

SPST-NO PCB Mount Non-Latching Relay Through Hole, 12V dc
Documentation

Datasheet

RE032012 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

RE032012 Specifications

Attribute	Attribute Value

Part Number	RE032012
Manufacturer	TE Connectivity
ChipWorker Part#	CW34378758
Category	Power Relay
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	-
Voltage Rating (AC)	400 V
Contact Current Rating	15 A
Coil Voltage	12 VDC
Coil Current	16.67 mA
Coil Resistance	720 Ω
Current Rating (Max)	15 A
Coil Voltage (DC)	12 V
Coil Power	200 mW
Input Power (Max)	1.5 KVA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	12 VDC
Voltage Rating (AC Max)	400 V
	expand all
Size-Length	20 mm
Size-Width	10.6 mm
Size-Height	10.6 mm
Contact Material	Silver Nickel
Operating Temperature	-40℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HTS Code	8536410050
ECCN Code	EAR99

Product Description

The RE032012 is a miniature PCB Relay with DC coil. This RE-series relay has form-A (1NO) gold-plated AgNi 0.15 contact with wash tight version. Typical applications such as PLC"s, timers, temperature control, I/O cards, white goods.
PCB terminal type
-40 to 70°C Ambient temperature range
