REF5010AIDR - TI

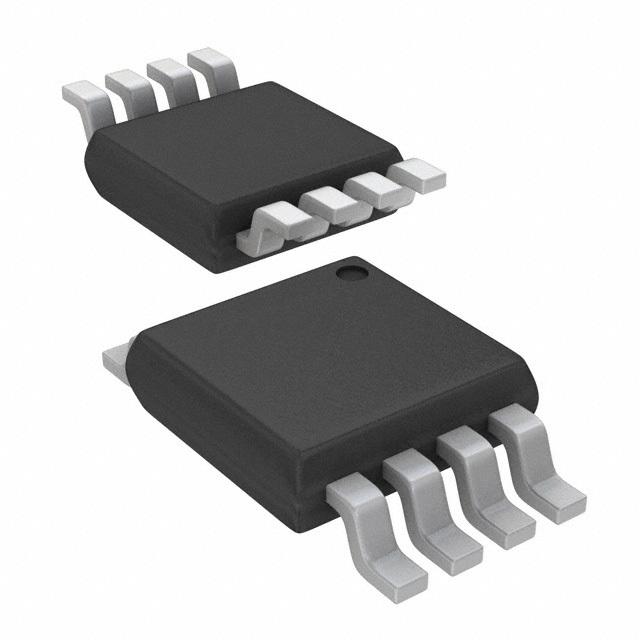

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

REF5010AIDR
Manufacturer

TI
ChipWorker Part#

CW35699431
Category

Voltage Reference
Package

SOIC-8
Description

Series Voltage Reference Low Noise, Very Low Drift, Precision Voltage Reference V-Ref Precision 10V 10mA 8Pin SOIC T/R
Documentation

Datasheet

REF5010AIDR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

REF5010AIDR Specifications

Attribute	Attribute Value

Part Number	REF5010AIDR
Manufacturer	TI
ChipWorker Part#	CW35699431
Category	Voltage Reference
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Capacitance Tolerance	±0.1 %
Output Current	10 mA
Supply Current	1.2 mA
Number of Channels	1 Channel
Quiescent Current	800 µA
Output Voltage (Max)	10 V
Output Voltage (Min)	10 V
Accuracy	±0.1 %
Input Voltage	10.2V ~ 18V
	expand all
Operating Temperature	-40℃ ~ 125℃ (TA)
Temperature Coefficient	±8 ppm/℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

DESCRIPTION
The REF50xx is a family of low-noise, low-drift, very high precision voltage references. These references are capable of both sinking and sourcing, and are very robust with regard to line and load changes. Excellent temperature drift (3ppm/°C) and high accuracy (0.05%) are achieved using proprietary design techniques. These features, combined with very-low noise make the REF50xx family ideal for use in high-precision data acquisition systems.
FEATURES
• LOW TEMPERATURE DRIFT:
– High-Grade: 3ppm/°C (max)
– Standard-Grade: 8ppm/°C (max)
• HIGH ACCURACY:
– High-Grade: 0.05% (max)
– Standard-Grade: 0.1% (max)
• LOW NOISE: 3µVPP/V
• HIGH OUTPUT CURRENT: ±10mA
• TEMPERATURE RANGE: –40°C to +125°C
