REG1117 ,Voltage Regulator - TI

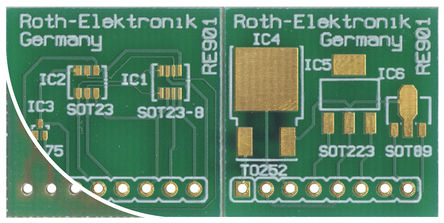

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

166 points

Part No

REG1117
Manufacturer

TI
ChipWorker Part#

CW2232746
Category

Voltage Regulator
Package

TO-261-4
Description

Single Channel LDO Single Output LDO, 800mA, Adj.(1.25 to 13.5V), Internal Current limit, Thermal Overload Protection LDO Regulator Pos 1.25V to 13.5V 0.8A 4Pin (3+Tab) SOT-223 Rail
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 0.63

Buy REG1117

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

REG1117 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

REG1117 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	REG1117
Manufacturer	TI
ChipWorker Part#	CW2232746
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	TO-261-4
Current Rating	800 mA
Number of Outputs	1 Output
Input Voltage (DC)	15.0V (max)
Output Voltage	1.25V ~ 13.5V
Output Current	800 mA
Number of Positions	3 Position
Quiescent Current	4 mA
Output Capacitor Type	Ceramic
voltage rating	1.1 V
Number of Regulated Outputs	1 Output
Input Bias Current	4.00 mA
Input Voltage (Max)	15 V
Input Voltage (Min)	3.8 V
Output Voltage (Max)	13.5 V
Output Voltage (Min)	1.5 V
Output Current (Max)	800 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±1 %
Input Voltage	3.8V ~ 15V
	expand all
Size-Length	6.5 mm
Size-Width	3.5 mm
Size-Height	1.6 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Similar & Replacement Parts

Similar products

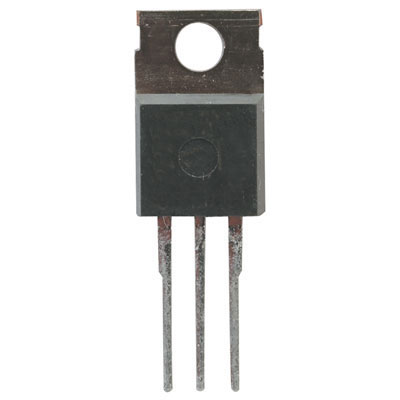

LM1117T-3.3/NOPB

National Semiconductor

Product Description

The REG1117 is a family of easy-to-use three-terminal voltage regulators. The family includes a variety of fixed-and adjustable-voltage versions, two currents (800mA and 1A) and two package types (SOT-223 and DDPAK). See the chart below for available options.
Output voltage of the adjustable versions is set with two external resistors. The REG1117 low dropout voltage allows its use with as little as 1V input-output voltage differential.
Laser trimming assures excellent output voltage accuracy without adjustment. An NPN output stage allows output stage drive to contribute to the load current for maximum efficiency.
FIXED AND ADJUSTABLE VERSIONS
2.85V MODEL FOR SCSI-2 ACTIVE TERMINATION
OUTPUT CURRENT:
REG1117: 800mA max
REG1117A: 1A max
OUTPUT TOLERANCE: ±1% max
DROPOUT VOLTAGE:
REG1117: 1.2V max at IO = 800mA
REG1117A: 1.3V max at IO = 1A
INTERNAL CURRENT LIMIT
THERMAL OVERLOAD PROTECTION
SOT-223 AND DDPAK SURFACE-MOUNT PACKAGES
APPLICATIONS
SCSI-2 ACTIVE TERMINATION
HAND-HELD DATA COLLECTION DEVICES
HIGH EFFICIENCY LINEAR REGULATORS
BATTERY POWERED INSTRUMENTATION
BATTERY MANAGEMENT CIRCUITS FOR NOTEBOOK AND PALMTOP PCs
CORE VOLTAGE SUPPLY: FPGA, PLD, DSP, CPU
All trademarks are the property of their respective owners.
