RT8258GJ6 - Richtek

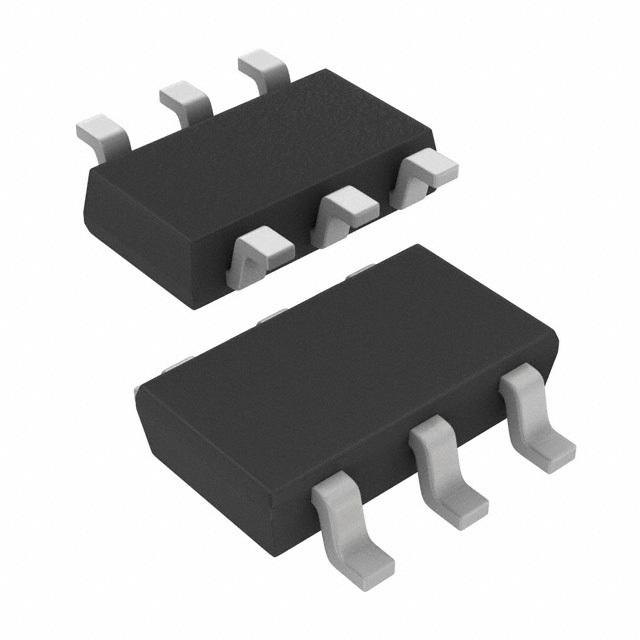

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

RT8258GJ6
Manufacturer

Richtek
ChipWorker Part#

CW9847308
Category

DC to DC Converter
Package

TSOT-23-6
Description

Conv DC-DC 4.5V to 24V Step Down Single-Out 0.8V to 15V 1.2A 6Pin TSOT-23
Documentation

Datasheet

RT8258GJ6 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

RT8258GJ6 Specifications

Attribute	Attribute Value

Part Number	RT8258GJ6
Manufacturer	Richtek
ChipWorker Part#	CW9847308
Category	DC to DC Converter
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	TSOT-23-6
Number of Outputs	1 Output
Output Voltage	0.8V ~ 15V
Output Current	1.2 A
Number of Positions	6 Position
Switching Frequency	700 kHz
Input Voltage (Max)	24 V
Input Voltage (Min)	4.5 V
Output Voltage (Max)	15 V
Output Voltage (Min)	0.8 V
Output Current (Max)	1.2 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
	expand all
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
HK STC License	NLR

Product Description

General Description
The RT8258 is a high voltage buck converter that can support the input voltage range from 4.5V to 24V and the output current can be up to 1.2A. Current Mode operation provides fast transient response and eases loop stabilization.
The chip also provides protection functions such as cycle by-cycle current limiting and thermal shutdown protection. The RT8258 is available in a SOT-23-6 and TSOT-23-6 packages.
Features
• Wide Operating Input Voltage Range : 4.5V to 24V
• Adjustable Output Voltage Range : 0.8V to 15V
• 1.2A Output Current
• 0.3Ω Internal Power MOSFET Switch
• High Efficiency up to 92%
• 700kHz Fixed Switching Frequency
• Stable with Low ESR Output Ceramic Capacitors
• Thermal Shutdown
• Cycle-By-Cycle Over Current Protection
• RoHS Compliant and Halogen Free
Applications
• Distributed Power Systems
• Battery Charger
• Pre-Regulator for Linear Regulators
• WLED Drivers
