RY530024 - TE Connectivity

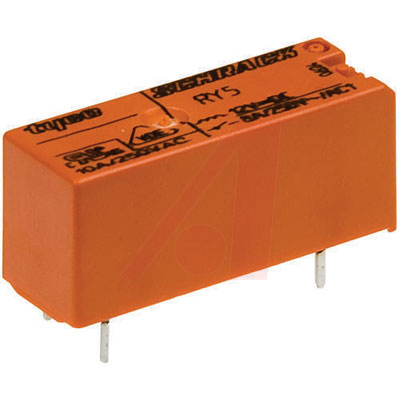

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

RY530024
Manufacturer

TE Connectivity
ChipWorker Part#

CW46554492
Category

Power Relay
Description

Power Relay 24VDC 8A SPST-NO (( 28.5mm 10.1mm 12.3mm)) Through Hole
Documentation

Datasheet

RY530024 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

RY530024 Specifications

Attribute	Attribute Value

Part Number	RY530024
Manufacturer	TE Connectivity
ChipWorker Part#	CW46554492
Category	Power Relay
Documentation	Datasheet
Mounting Style	Through Hole
Current Rating	8 A
Input Voltage (DC)	24.0 V
voltage rating	2.40 V
Contact Current Rating	8.00 A
Coil Voltage	24 VDC
Coil Current	10.21 mA
Coil Power (DC)	220 mW
Coil Resistance	2.35 kΩ
Coil Voltage (DC)	24 V
Input Power (Max)	2 KVA
Switching Current (Max)	8 A
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	24 VDC
	expand all
Size-Length	28.5 mm
Size-Width	12.3 mm
Size-Height	12.3 mm
Contact Material	Silver Cadmium Oxide
Operating Temperature	-40℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
ELV Compliant	Non-Compliant
HTS Code	8536490080
ECCN Code	EAR99

Product Description

Power Relay 24VDC 8A SPST-NO(28.5x10.1x12.3)mm THT
Product Highlights
RYII Series
Contact Arrangement = 1 Form A, SPST-NO, 1 N/O
Contact Current Rating = 8 Amps.
Monostable Coil Magnetic System
Without Coil Suppression Diode

expand all
