S29AL016J70TFI020 - Spansion

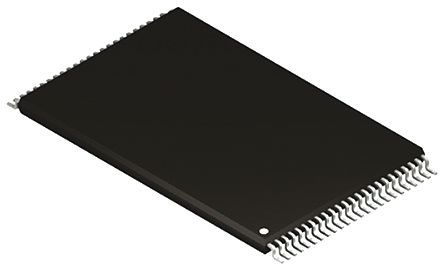

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

S29AL016J70TFI020
Manufacturer

Spansion
ChipWorker Part#

CW4611500
Category

Flash Memory, Flash
Package

TSOP-48
Description

SPANSION S29AL016J70TFI020 Flash Memory, 16Mbit, 2M x 8Bit / 1M x 16Bit, CFI, TSOP, 48Pins
Documentation

Datasheet

S29AL016J70TFI020 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

S29AL016J70TFI020 Specifications

Attribute	Attribute Value

Part Number	S29AL016J70TFI020
Manufacturer	Spansion
ChipWorker Part#	CW4611500
Category	Flash Memory, Flash
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	TSOP-48
Supply Voltage (DC)	2.70V (min)
Supply Current	12 mA
Number of Positions	48 Position
Access Time	70 ns
Memory Size	2000000 B
Access Time(Max)	70 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.7V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2.7 V
	expand all
Size-Length	18.5 mm
Size-Width	12.1 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
HK STC License	NLR

Product Description

The S29AL016J70TFI020 is a 16Mb CMOS 3V Boot Sector Flash Memory with CFI interface. The sector group protection features a hardware method of locking a sector to prevent any program or erase operations within that sector, sectors can be locked in-system or via programming equipment and temporary sector unprotect allows code changes in previously locked sectors. The device offers access time of 55ns allowing high speed microprocessors to operate without wait states. To eliminate bus contention the device has separate chip enable, write enable and output enable controls. The device offers two power-saving features. When addresses have been stable for a specified amount of time, the device enters the automatic sleep mode. The system can also place the device into the standby mode. Power consumption is greatly reduced in both these modes.
Fully compatible with 200nm S29AL016D
Top or bottom boot block configurations available
Compatibility with JEDEC standards
Pin out and software compatible with single-power supply flash
Superior inadvertent write protection
High performance - Access times as fast as 55ns
Cycling endurance - 1000000 cycles per sector typical
Data retention - 20 years typical
-40 to 125°C Temperature range
