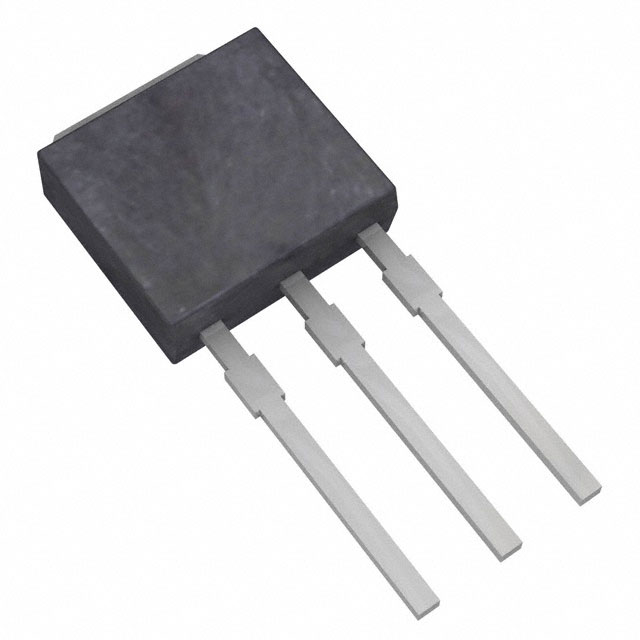

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

S8055R
Manufacturer

Littelfuse
ChipWorker Part#

CW18309836
Category

SCR Diode, SCR
Package

TO-220-3
Description

Thyristor, 800V, 40mA, 35A, 55A, TO-220AB, 3Pins
Documentation

Datasheet

S8055R Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

S8055R Specifications

Attribute	Attribute Value

Part Number	S8055R
Manufacturer	Littelfuse
ChipWorker Part#	CW18309836
Category	SCR Diode, SCR
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Number of Contacts	3 Contact
Voltage Rating (DC)	800 V
Current Rating	35.0 A
Load Current	35 A
Number of Positions	3 Position
Holding Current	60 mA
Holding Current (Max)	60 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
	expand all
Size-Length	10.67 mm
Size-Width	4.78 mm
Size-Height	15.75 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99

Product Description

The S8055R is a 3-pin 55A/800V standard non-isolated SCR with tin-plated terminals and epoxy body. The Sxx55x-series SCR excellent unidirectional switch for phase control applications.
