SM15T30A - ST Microelectronics

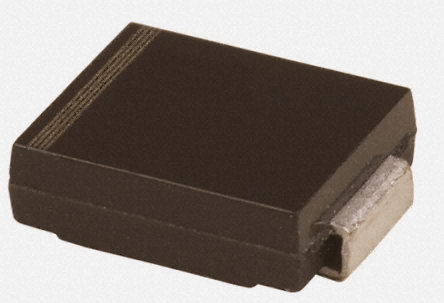

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SM15T30A
Manufacturer

ST Microelectronics
ChipWorker Part#

CW21374728
Category

TVS Diode
Package

DO-214AB
Description

SMC 25.6V 1500W
Documentation

Datasheet

SM15T30A Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SM15T30A Specifications

Attribute	Attribute Value

Part Number	SM15T30A
Manufacturer	ST Microelectronics
ChipWorker Part#	CW21374728
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AB
Voltage Rating (DC)	30.0 V
Operating Voltage	30.0 V
Power Rating	1.50 kW
Breakdown Voltage	30 V
Number of Circuits	1 Circuit
Number of Positions	2 Position
Power Dissipation	1.5 kW
Clamping Voltage	53.5 V
Max Repetitive Reverse Voltage (Vrrm)	25.6V
Test Current	1 mA
Max Breakdown Voltage	31.5 V
Peak Pulse Power	1500 W
Min Breakdown Voltage	28.5 V
Reverse Breakdown Voltage	28.5 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	-55℃ ~ 150℃
	expand all
Size-Length	7.15 mm
Size-Width	6.25 mm
Size-Height	2.45 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

The Transil SM15T series TVS Diode designed to protect sensitive equipment against electrostatic discharges according to IEC 61000-4-2 and MIL STD 883, method 3015 and electrical over stress according to IEC 61000-4-4 and 5. It is generally used against surges below 1500W (10/1000µs). Planar technology makes these devices suitable for high-end equipment and SMPS where low leakage current and high junction temperature are required to provide reliability and stability over time.
6.8 to 220V Breakdown voltage range
Unidirectional and bidirectional types
-55 to 150°C Operating junction temperature range
