SM15T68CA ,TVS Diode - ST Microelectronics

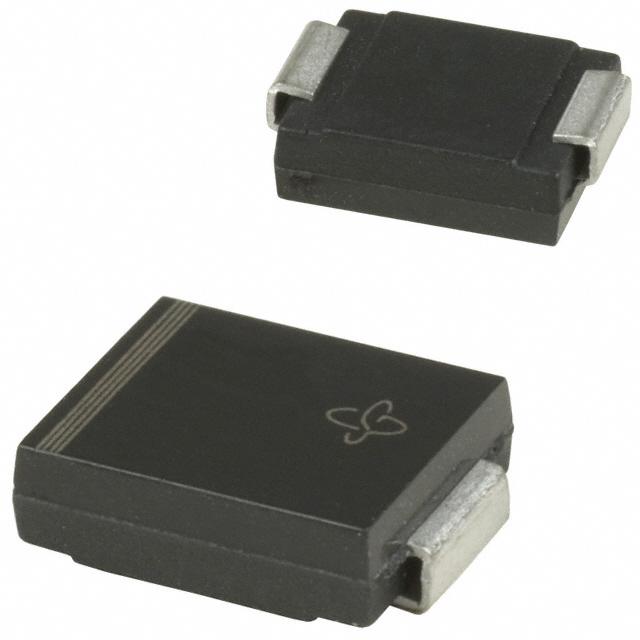

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

149 points

Part No

SM15T68CA
Manufacturer

ST Microelectronics
ChipWorker Part#

CW8826561
Category

TVS Diode
Package

DO-214AB
Description

SMC 58.1V 1500W
Documentation

Datasheet
Ships from

Moscow
Наличие

4980 pcs In Stock
Estimated Price

$ 0.19

Buy SM15T68CA

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

SM15T68CA Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

SM15T68CA Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	SM15T68CA
Manufacturer	ST Microelectronics
ChipWorker Part#	CW8826561
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AB
Voltage Rating (DC)	68.0 V
Operating Voltage	68.0 V
Power Rating	1.50 kW
Breakdown Voltage	68 V
Number of Circuits	1 Circuit
Number of Positions	2 Position
Power Dissipation	1500 W
Clamping Voltage	121 V
Max Repetitive Reverse Voltage (Vrrm)	58.1V
Test Current	1 mA
Max Breakdown Voltage	71.4 V
Peak Pulse Power	1500 W
Min Breakdown Voltage	64.6 V
Reverse Breakdown Voltage	64.6 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	-55℃ ~ 150℃
	expand all
Size-Length	7.15 mm
Size-Width	6.25 mm
Size-Height	2.45 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

The Transil SM15T series TVS Diode designed to protect sensitive equipment against electrostatic discharges according to IEC 61000-4-2 and MIL STD 883, method 3015 and electrical over stress according to IEC 61000-4-4 and 5. It is generally used against surges below 1500W (10/1000µs). Planar technology makes these devices suitable for high-end equipment and SMPS where low leakage current and high junction temperature are required to provide reliability and stability over time.
6.8 to 220V Breakdown voltage range
Unidirectional and bidirectional types
-55 to 150°C Operating junction temperature range
