SMBJ24A ,TVS Diode - Littelfuse

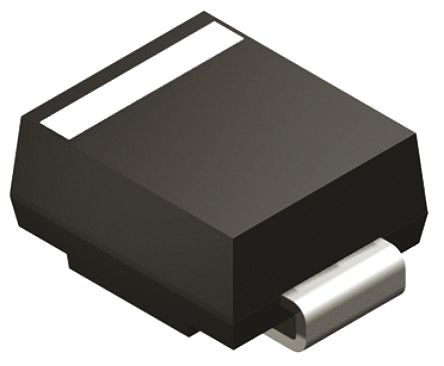

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

173 points

Part No

SMBJ24A
Manufacturer

Littelfuse
ChipWorker Part#

CW847604
Category

TVS Diode
Package

DO-214AA
Description

LITTELFUSE SMBJ24A TVS Diode, SMBJ Series, Unidirectional, 24V, 38.9V, DO-214AA, 2Pins
