SMBJ40CA - Littelfuse

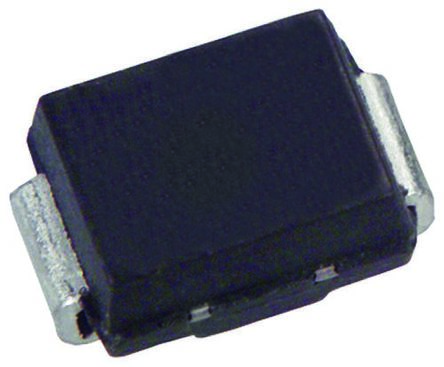

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SMBJ40CA
Manufacturer

Littelfuse
ChipWorker Part#

CW631104
Category

TVS Diode
Package

DO-214AA-2
Description

TVS Diode, SMBJ Series, Bidirectional, 40V, 64.5V, DO-214AA, 2Pins
Documentation

Datasheet

SMBJ40CA Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SMBJ40CA Specifications

Attribute	Attribute Value

Part Number	SMBJ40CA
Manufacturer	Littelfuse
ChipWorker Part#	CW631104
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AA-2
Voltage Rating (DC)	40.0 V
Operating Voltage	40 V
Capacitance	1000 pF
Power Rating	600 W
Breakdown Voltage	46.75 V
Number of Circuits	1 Circuit
Number of Positions	2 Position
Power Dissipation	600 W
Clamping Voltage	64.5 V
Test Current	1 mA
Max Breakdown Voltage	49.1 V
Max Forward Surge Current (Ifsm)	100 A
Peak Pulse Power	600 W
Min Breakdown Voltage	44.4 V
Reverse Breakdown Voltage	44.4 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	-65℃ ~ 150℃
	expand all
Size-Length	5.59 mm
Size-Width	3.94 mm
Size-Height	2.44 mm
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
HTS Code	8541100080
ECCN Code	EAR99

Product Description

The SMBJ series surface-mount Transient Voltage Suppression Diode designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. It is ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits. It is used for surface mounted applications in order to optimize board space.
600W Peak pulse power capability at 10x1000µs waveform
Built-in strain relief
Glass passivated chip junction
Low incremental surge resistance
Excellent clamping capability
0.01% Repetition rate (duty cycle)
<1ps from 0V to V(BR) Minimum fast response time
<1µA above 12V Current IR
Available in unidirectional and bidirectional
ESD protection of data lines in accordance with IEC 61000-4-2 (IEC801-2)
EFT protection of data lines in accordance with IEC 61000-4-4 (IEC801-4)
-65 to 150°C Operating temperature range
