SN74LVC3G04DCTR - TI

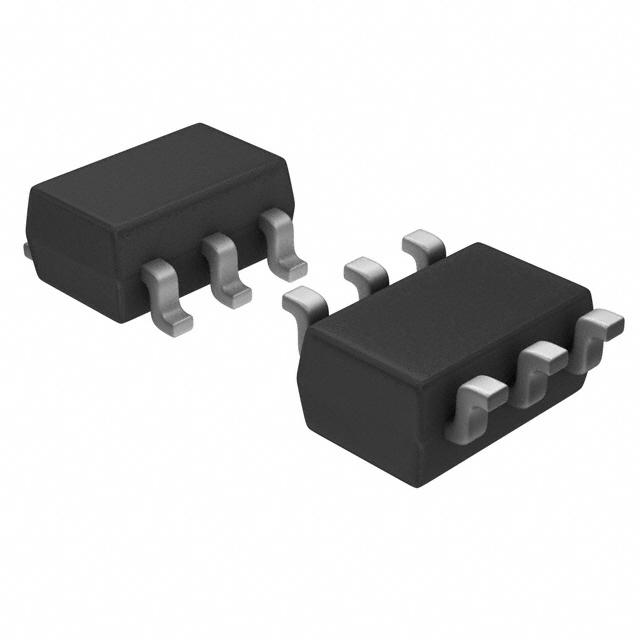

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoSN74LVC3G04DCTR
-
ManufacturerTI
-
ChipWorker Part#CW13869936
-
CategoryLogic Control, Logic Gate IC
-
RoHSLead free / RoHS Compliant
-
DescriptionTEXAS INSTRUMENTS SN74LVC3G04DCTR Inverter, 74LVC3G04, 1Input, 32mA, 1.65V to 5.5V, SSOP-8
-
DocumentationDatasheet
Payment Methods and Delivery
{{ estimate }}
SN74LVC3G04DCTR Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
- |
{{outStock}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
- | ${{UpToFourDecimals(priceCalc,skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
{{ apiText }}{{ apiTime }}(UTC+8)
SN74LVC3G04DCTR Specifications
| Attribute | Attribute Value |
|---|---|
| Part Number | SN74LVC3G04DCTR |
| Manufacturer | TI |
| ChipWorker Part# | CW13869936 |
| Category | Logic Control, Logic Gate IC |
| Documentation | Datasheet |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SSOP-8 |
| Supply Voltage (DC) | 5.00 V |
| Output Current | 32 mA |
| Number of Circuits | 3 Circuit |
| Number of Positions | 8 Position |
| Number of Bits | 3 Bit |
| Propagation Delay Max (tpd) | 3.20 ns |
| Number of Gates | 3 Gate |
| Number of Inputs | 1 Input |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 1.65V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 1.65 V |
| expand all | |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
Product Description
- The SN74LVC3G04DCTR is a triple Inverter Gate designed for 1.65 to 5.5V VCC operation. The device performs the Boolean function Y = A\\. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
- Supports 5V VCC operation
- Inputs accept voltages to 5.5V
- Maximum tpd of 4.1ns at 3.3V
- 10µA Maximum ICC low power consumption
- ±24mA Output drive at 3.3V
- Ioff supports live insertion
- Partial-power-down mode
- Back-drive protection
- Can be used as a down translator
- Latch-up performance exceeds 100mA per JESD 78, Class II
- ESD protection exceeds JESD 22
- Green product and no Sb/Br
Delivery
Chipworker Certification
Ordering Information
-
These terms and conditions are for reference only. The actual terms and conditions are subject to the sales staff's quotation.
- Please check the technical specifications of the products when ordering.
- MOQ is the minimum order quantity required to purchase each part.
- If you have special ordering instructions, please indicate them on the order page.
- Pre-Shipment Inspection (PSI) will be used when ordering.
- You can check the status of your order in the “My Order” section of your personal account.
- Orders cannot be canceled after the package has been shipped. View more > -
- Works with both individual and corporate clients. View more >
- All prices on the website include 20% VAT.
- Invoices are issued in the currency specified, but payment is made in Russian rubles at the exchange rate on the day of payment.
- If you need a detailed invoice or a tax identifier, please contact us. -
- Delivery will take between 1 to 2 weeks after the shipment is sent to your country.
- Your order will be processed only after the invoice has been paid.
- The tracking number will be sent to you after the order is shipped. (It may take up to 24 hours for the information to be available from the carrier.) View more > - - Carefully tested and packaged by ChipWorker- Vacuum packed - Anti-static packaging - Anti-vibration foam
-
- Income quality control (IQC), 800+ qualified distributors.
- Authorities test the chip to ensure the quality, authenticity and safety of your device.
- Decapsulation control
- X-ray inspection
- XRF inspection
- Electrical testing
- Surface testing
Contact Us
Contact us today and a sales representative will provide you with a quote for any model.
Buy SN74LVC3G04DCTR
Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.
Customer Service, Quick Links
Find immediate assistance and access to our most used services through our Quick Links. Your satisfaction is our priority.
