SS24T3G ,Schottky Diode - ON Semiconductor

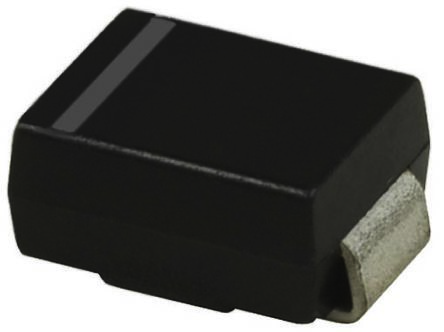

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

217 points

Part No

SS24T3G
Manufacturer

ON Semiconductor
ChipWorker Part#

CW759729
Category

Schottky Diode
Package

DO-214AA
Description

ON Semi SS24T3G, SMT Schottky Diode, 40V 2A, 2Pin DO-214AA
Documentation

Datasheet
Ships from

Moscow
Наличие

3352 pcs In Stock
Estimated Price

$ 0.06

Buy SS24T3G

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

SS24T3G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

SS24T3G Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	SS24T3G
Manufacturer	ON Semiconductor
ChipWorker Part#	CW759729
Category	Schottky Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AA
Voltage Rating (DC)	40.0 V
Current Rating	2.00 A
Halogen Free Status	Halogen Free
Output Current	≤2.00 A
Load Current	2 A
Number of Positions	2 Position
Forward Voltage	500mV @2A
Polarity	Standard
Thermal Resistance	24℃/W (RθJL)
Forward Current	2 A
Max Forward Surge Current (Ifsm)	75 A
Maximum Forward Voltage (Max)	500 mV
Forward Current (Max)	2 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	expand all
Size-Length	4.57 mm
Size-Width	3.81 mm
Size-Height	2.26 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

The SS24T3G is a surface-mount Schottky Power Rectifier with moulded epoxy case. It employs the Schottky barrier principle in a metal-to-silicon power rectifier. It features epitaxial construction with oxide passivation and metal overlay contact. It is ideally suited for low voltage, high frequency switching power supplies, free-wheeling diodes and polarity protection diodes.
All external surfaces corrosion-resistant
Cathode lead indicated by polarity band
Compact package with J-bend leads ideal for automated handling
Highly stable oxide-passivated junction
Guard-ring for overvoltage protection
Low forward voltage drop
AEC-Q101 qualified and PPAP capable
UL94V-0 Flammability rating
