STL13DP10F6 - ST Microelectronics

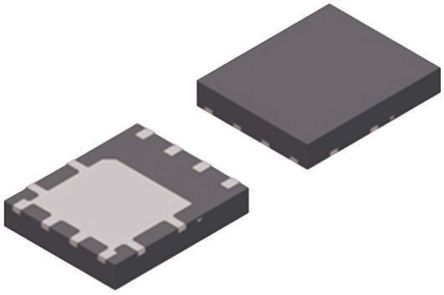

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

STL13DP10F6
Manufacturer

ST Microelectronics
ChipWorker Part#

CW36453106
Category

MOSFET, MOSFET Transistor
Package

PowerFLAT-5x6-8
Description

Power P-CH 100V 13A
Documentation

Datasheet

STL13DP10F6 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

STL13DP10F6 Specifications

Attribute	Attribute Value

Part Number	STL13DP10F6
Manufacturer	ST Microelectronics
ChipWorker Part#	CW36453106
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	PowerFLAT-5x6-8
Polarity	P-CH
Power Dissipation	4 W
Drain to Source Voltage (Vds)	100 V
Continuous Drain Current (Ids)	13A
Rise Time	4.8 ns
Input Capacitance (Ciss)	864pF @25V(Vds)
Input Power (Max)	62.5 W
Fall Time	4.5 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	62500 mW
	expand all
Size-Height	0.81 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

Mosfet Array 2 P-Channel (Dual) 100V 13A 62.5W Surface Mount PowerFlat™ (5x6)
