STTH2L06A ,TVS Diode - ST Microelectronics

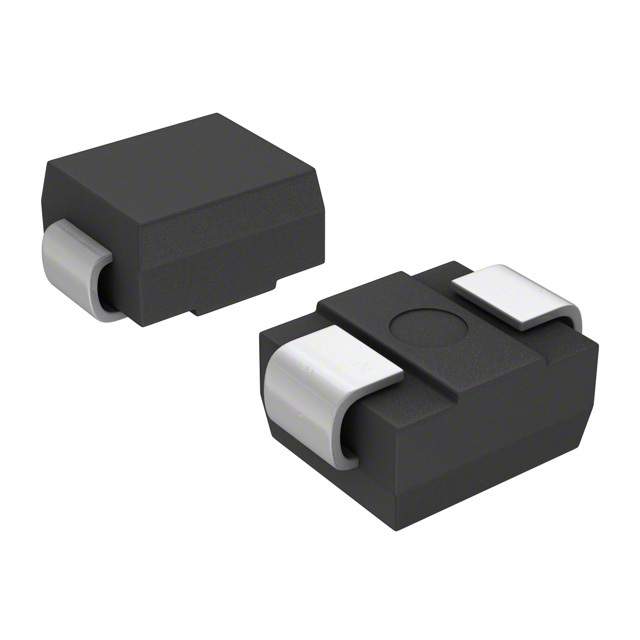

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

117 points

Part No

STTH2L06A
Manufacturer

ST Microelectronics
ChipWorker Part#

CW4899675
Category

TVS Diode
Package

DO-214AC
Description

STMICROELECTRONICS STTH2L06A Fast / Ultrafast Power Diode, 600V, 2A, Single, 1.3V, 85ns, 35A New
Documentation

Datasheet
Ships from

Moscow
Наличие

5197 pcs In Stock
Estimated Price

$ 0.06

Buy STTH2L06A

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

STTH2L06A Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

STTH2L06A Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	STTH2L06A
Manufacturer	ST Microelectronics
ChipWorker Part#	CW4899675
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AC
Voltage Rating (DC)	600 V
Current Rating	2.00 A
Output Current	≤2.00 A
Forward Voltage	1.3V @2A
Polarity	Standard
Thermal Resistance	30℃/W (RθJL)
Reverse recovery time	85 ns
Forward Current	2 A
Max Forward Surge Current (Ifsm)	35 A
Maximum Forward Voltage (Max)	1.3 V
Forward Current (Max)	2 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	175℃ (Max)
	expand all
Size-Length	4.6 mm
Size-Width	2.95 mm
Size-Height	2.03 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

ULTRAFAST HIGH VOLTAGE RECTIFIER Ultrafast switching ■ Low forward voltage drop ■ Low thermal resistance ■ Low leakage current (platinium doping)
