TAS5508C - TI

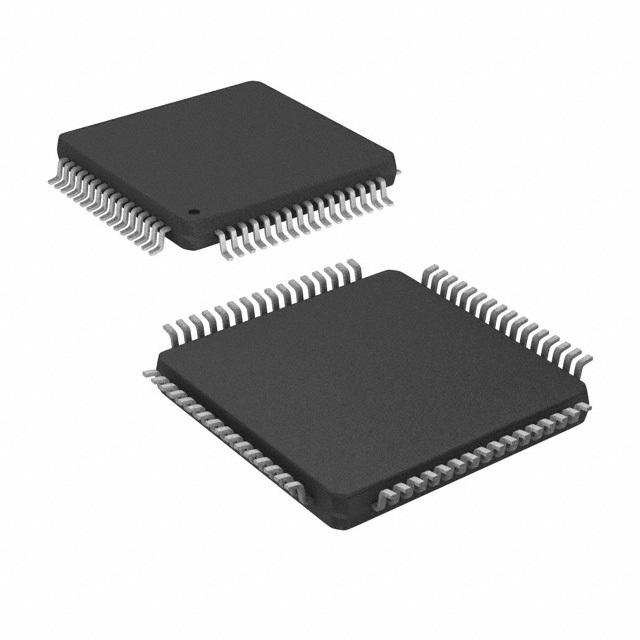

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

21 points

Part No

TAS5508C
Manufacturer

TI
ChipWorker Part#

CW248740267
Description

8Channel Digital Audio PWM Processor
Documentation

Datasheet
Ships from

Moscow
Наличие

763 pcs In Stock
Estimated Price

Price on Request

Buy TAS5508C

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

TAS5508C Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

TAS5508C Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	TAS5508C
Manufacturer	TI
ChipWorker Part#	CW248740267
Documentation	Datasheet
	expand all
Product Lifecycle Status
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Similar & Replacement Parts

Similar products

Product Description

The TAS5508C is an 8-channel digital pulse-width modulator (PWM) that provides both advanced performance and a high level of system integration. The TAS5508C is designed to interface seamlessly with most audio digital signal processors. The TAS5508C automatically adjusts control configurations in response to clock and data rate changes and idle conditions. This enables the TAS5508C to provide an easy-to-use control interface with relaxed timing requirements.
The TAS5508C can drive eight channels of H-bridge power stages. Texas Instruments H-bridge parts TAS5111, TAS5112, or TAS5182 with FETs are designed to work seamlessly with the TAS5508C. The TAS5508C supports both single-ended or bridge-tied load configurations. The TAS5508C also provides a high-performance, differential output to drive an external, differential-input, analog headphone amplifier (such as the TPA112).
The TAS5508C uses AD modulation operating at a 384-kHz switching rate for 48-, 96-, and 192-kHz data. The 8× oversampling combined with the fifth-order noise shaper provides a broad, flat noise floor and excellent dynamic range from 20 Hz to 20 kHz.
The TAS5508C is a clocked slave-only device. The TAS5508C receives MCLK, SCLK, and LRCLK from other system components. The TAS5508C accepts master clock rates of 128, 192, 256, 384, 512, and 768 Fs. The TAS5508C accepts a 64-Fs bit clock.
The TAS5508C allows for extending the dynamic range by providing a power-supply volume control (PSVC) output signal.
General Features
Automated Operation With an Easy-to-Use Control Interface
I2C Serial-Control Slave Interface
Integrated AM Interference-Avoidance Circuitry
Single, 3.3-V Power Supply
64-Pin TQFP Package
5-V Tolerant Inputs
Audio Input/Output
Automatic Master Clock Rate and Data Sample Rate Detection
Eight Serial Audio Input Channels
Eight PWM Audio Output Channels Configurable as Six Channels
With Stereo Lineout or Eight Channels
Line Output Is a PWM Output to Drive an External
Differential-Input Operational Amplifier
Headphone PWM Output to Drive an External Differential Amplifier
Like the TPA112
PWM Outputs Support Single-Ended and Bridge-Tied Loads
32-, 38-, 44.1-, 48-, 88.2-, 96-, 176.4-, and 192-kHz Sampling Rates
Data Formats: 16-, 20-, or 24-Bit Left-Justified, I2S,
or Right-Justified Input Data
64-Fs Bit-Clock Rate
128-, 192-, 256-, 384-, 512-, and 768-Fs Master Clock Rates
(Up to a Maximum of
50 MHz)
Audio Processing
48-Bit Processing Architecture With 76 Bits of Precision
for Most Audio Processing Features
Volume Control Range 36 dB to –127 dB
Master Volume Control Range of 18 dB to –100 dB
Eight Individual Channel Volume Control Ranges of 18 dB to –127 dB
Programmable Soft Volume and Mute
Update Rates
Four Bass and Treble Tone Controls with ±18-dB Range,
Selectable Corner Frequencies, and Second-Order Slopes
L, R, and C
LS, RS
LR, RR
Sub
Configurable Loudness Compensation
Two Dynamic Range Compressors With Two Thresholds, Two Offsets,
and Three Slopes
Seven Biquads Per Channel
Full 8×8 Input Crossbar Mixer. Each Signal-Processing
Channel Input Can Be Any Ratio of the Eight Input Channels.
8×2 Output Mixer – Channels 1–6. Each Output
Can Be Any Ratio of Any Two Signal-Processed Channels.
8×3 Output Mixer – Channels 7 and 8. Each Output
Can Be Any Ratio of Any Three Signal-Processed Channels.
Three Coefficient Sets Stored on the Device Can Be Selected
Manually or Automatically (Based on Specific Data Rates).
DC Blocking Filters
Able to Support a Variety of Bass Management Algorithms
PWM Processing
32-Bit Processing PWM Architecture With 40 Bits of Precision
8× Oversampling With Fifth-Order Noise Shaping at
32 kHz–48 kHz, 4× Oversampling at 88.2 kHz and
96 kHz, and 2× Oversampling at 176.4 kHz and 192 kHz
>102-dB Dynamic Range
THD+N < 0.1%
20-Hz–20-kHz, Flat Noise Floor for 44.1-, 48-, 88.2-, 96-,
176.4-, and 192-kHz Data Rates
Digital De-Emphasis for 32-, 44.1-, and 48-kHz Data Rates
Flexible Automute Logic With Programmable Threshold and Duration
for Noise-Free Operation
Intelligent AM Interference-Avoidance System Provides Clear AM Reception
Power-Supply Volume Control (PSVC) Support for Enhanced Dynamic Range in
High-Performance Applications
Adjustable Modulation Limit
PurePath Digital is a trademark of Texas Instruments.
Matlab is a trademark of Math Works, Inc.
All other trademarks are the property of their respective owners.
