TC1413NEOA ,FET Driver - Microchip

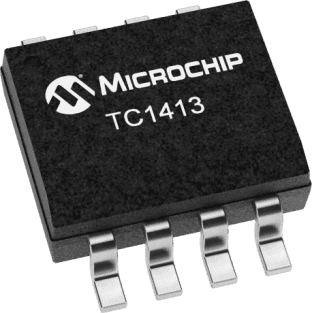

The pictures are for reference only, and the specific specifications can be found in the product manual.
Popularity Score
139 points
-
Part NoTC1413NEOA
-
ManufacturerMicrochip
-
ChipWorker Part#CW17530833
-
CategoryFET Driver
-
PackageSOIC-8
-
DescriptionMicrochip TC1413NEOA, MOSFET Power Driver 3A, 4.5 → 16V, Non-Inverting, 8Pin SOIC
-
DocumentationDatasheet
-
Ships fromMoscow
-
Наличие90 pcs In Stock
-
Estimated Price$ 1.37
