TCST1030 - VISHAY

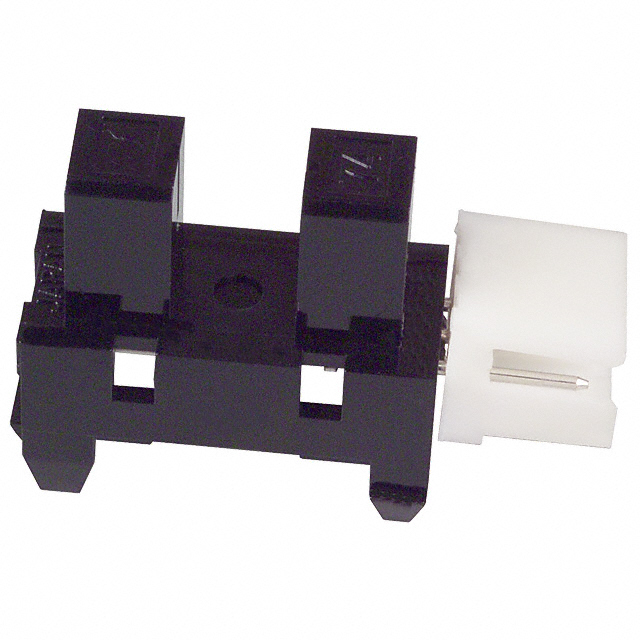

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TCST1030
Manufacturer

VISHAY
ChipWorker Part#

CW5681807
Package

Lead-4
Description

Photointerrupter Transmissive 3mm Phototransistor 4Pin Tube
Documentation

Datasheet

TCST1030 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TCST1030 Specifications

Attribute	Attribute Value

Part Number	TCST1030
Manufacturer	VISHAY
ChipWorker Part#	CW5681807
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	Lead-4
Power Rating	0.25 W
Wavelength	950 nm
Peak Wavelength	950 nm
Power Dissipation	0.25 W
Breakdown Voltage (Collector to Emitter)	70 V
Forward Current	60 mA
Reverse Breakdown Voltage	6 V
Forward Current (Max)	60 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Power Dissipation (Max)	250 mW
	expand all
Size-Length	8.3 mm
Size-Width	4.7 mm
Size-Height	8.15 mm
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
