TD310ID ,FET Driver - ST Microelectronics

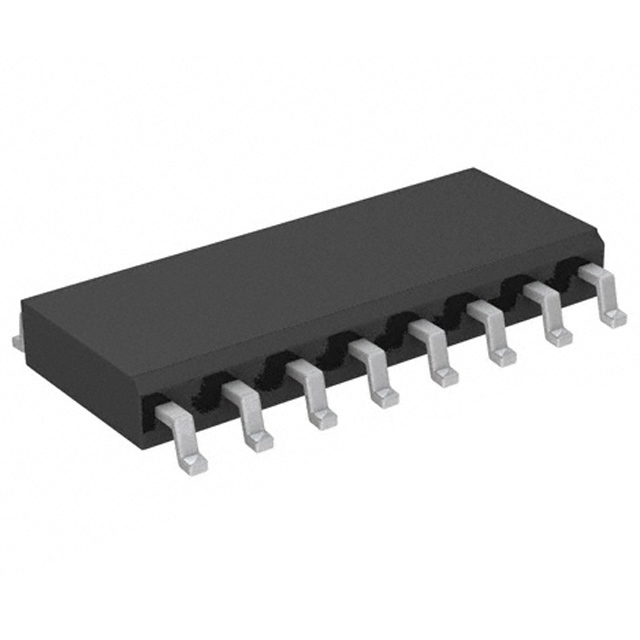

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

139 points

Part No

TD310ID
Manufacturer

ST Microelectronics
ChipWorker Part#

CW6336129
Category

FET Driver
Package

SOIC-16
Description

Driver; IGBT gate driver, MOSFET gate driver; 600mA; 5V; SO16
Documentation

Datasheet
Ships from

Moscow
Наличие

1560 pcs In Stock
Estimated Price

$ 2.06

Buy TD310ID

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

TD310ID Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

TD310ID Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	TD310ID
Manufacturer	ST Microelectronics
ChipWorker Part#	CW6336129
Category	FET Driver
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	4.00V (min)
Number of Outputs	3 Output
Output Current	0.6 A
Number of Positions	16 Position
Output Voltage (Max)	5 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4V ~ 16V
Supply Voltage (Max)	16 V
Supply Voltage (Min)	4 V
	expand all
Size-Length	10 mm
Size-Width	4 mm
Size-Height	1.65 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

The TD310ID is a triple IGBT/MOS Driver with current sense. It has driving capability for pulse transformer. So it is perfectly suited to interface control IC with power switches in low-side or half-bridge configuration. It includes a current sense comparator which inhibits the output drivers in case of overcurrent. An alarm output signals the even to a controller. It also includes an uncommitted op-amp which can be used for current measurement (as an amplifier before the A/D input of a microcontroller) of for other general purpose. Programmable under-voltage lockout and standby mode make TD310 suitable for a large area of environment and application. Typical applications are low-side IGBT and power MOSFET drive in three phase systems, pulse transformer drive and general purpose pulse drive.
Standby mode
Adjustable under-voltage lockout level
Channel paralleling capability
CMOS/LSTTL compatible inverting input with hysteresis
Three power IGBT/MOS and pulse transformer drivers
Uncommitted op-amp
Current sense comparator
7R at 200mA Typical low output impedance
1.5mA Typical low bias current
0.6A Peak output current capability per channel
