TDA1562Q - NXP

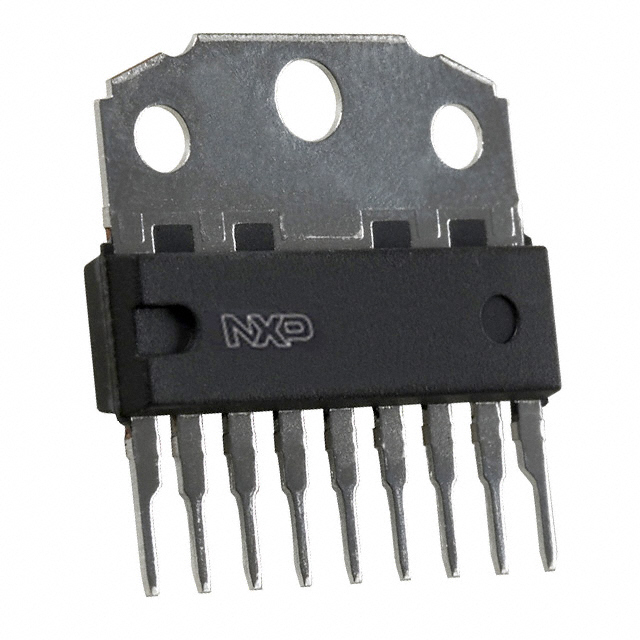

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

54 points

Part No

TDA1562Q
Manufacturer

NXP
ChipWorker Part#

CW122428148
Package

ZIP
Description

Audio Amp Speaker 1CH Mono 70W Class-B/Class-H 17Pin DBS17P
Documentation

Datasheet
Ships from

Moscow
Наличие

50 pcs In Stock
Estimated Price

$ 0.81

Buy TDA1562Q

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

TDA1562Q Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

TDA1562Q Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	TDA1562Q
Manufacturer	NXP
ChipWorker Part#	CW122428148
Documentation	Datasheet
Number of Pins	17 Pin
Case/Package	ZIP
Power Rating	70 W
	expand all
Product Lifecycle Status	Unknown
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Similar & Replacement Parts

Similar products

Siemens Semiconductor

Product Description

GENERAL DESCRIPTION
The TDA1562 is a monolithic integrated 70 W/4 Ω Bridge-Tied Load (BTL) class-H high efficiency power amplifier in a 17 lead DIL-bent-SIL plastic power package.
The device can be used for car audio systems (e.g. car radios and boosters) as well as mains fed applications (e.g. midi/mini audio combinations and TV sound).
FEATURES
• Very high output power, operating from a single low supply voltage
• Low power dissipation, when used for music signals
• Switches to low output power at too high case temperatures
• Few external components
• Fixed gain
• Differential inputs with high common mode rejection
• Mode select pin (on, mute and standby)
• Status I/O pin (class-H, class-B and fast mute)
• All switching levels with hysteresis
• Diagnostic pin with information about:
– Dynamic Distortion Detector (DDD)
– Any short-circuit at outputs
– Open load detector
– Temperature protection.
• No switch-on or switch-off plops
• Fast mute on supply voltage drops
• Quick start option (e.g. car-telephony/navigation)
• Low (delta) offset voltage at the outputs
• Load dump protection
• Short-circuit safe to ground, supply voltage and across the load
• Low power dissipation in any short-circuit condition
• Protected against electrostatic discharge
• Thermally protected
• Flexible leads.
