TL494BDR2G ,Voltage Regulator - ON Semiconductor

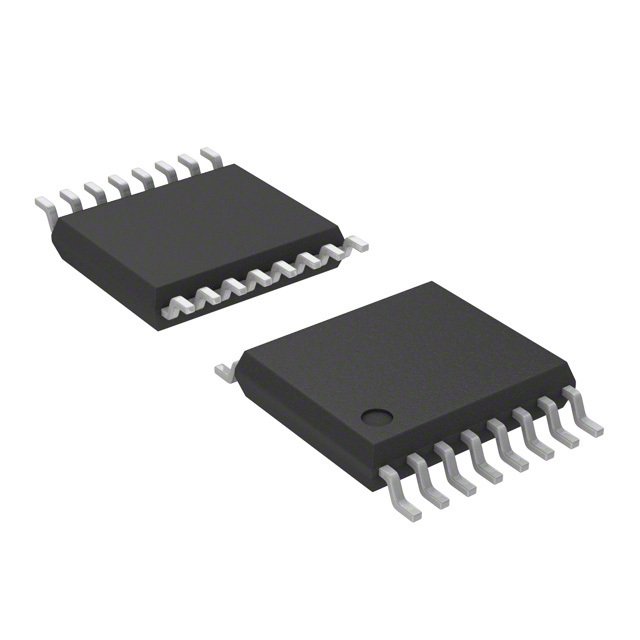

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

140 points

Part No

TL494BDR2G
Manufacturer

ON Semiconductor
ChipWorker Part#

CW5339044
Category

Voltage Regulator
Package

SOIC-16
Description

Voltage Mode PWM Controller 500mA 200kHz Automotive 16Pin SOIC T/R
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 0.53

Buy TL494BDR2G

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

TL494BDR2G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

TL494BDR2G Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	TL494BDR2G
Manufacturer	ON Semiconductor
ChipWorker Part#	CW5339044
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Frequency	40 kHz
Number of Outputs	2 Output
Output Current	500 mA
Number of Positions	16 Position
Power Dissipation	1000 mW
Rise Time	100 ns
Switching Frequency	200 kHz
Topology	Flyback, Forward, Half-Bridge, Push-Pull, Step-Up, Step-Down
Thermal Resistance	80 ℃/W
Duty Cycle	50 %
Maximum Duty Cycle	48 %
Fall Time	40 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1000 mW
Supply Voltage	7V ~ 40V
Supply Voltage (Max)	40 V
Supply Voltage (Min)	7 V
	expand all
Size-Length	10 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

Are you in search of a pulse-width modulation controller? Look no further than ON Semiconductor"s TL494BDR2G voltage mode PWM controller. Its typical operating supply voltage is 15 V. This voltage mode driver supports push-pull topology. Its 2 PWM outputs produce a current of 500 mA. It has a switching frequency of 200 kHz. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This device has a typical operating supply voltage of 15 V. Its minimum operating supply voltage of 7 V, while its maximum is 40 V. This voltage mode driver"s maximum duty cycle is 48(Typ) %. This voltage mode driver has an operating temperature range of -40 °C to 125 °C.
