TLP185 - Toshiba

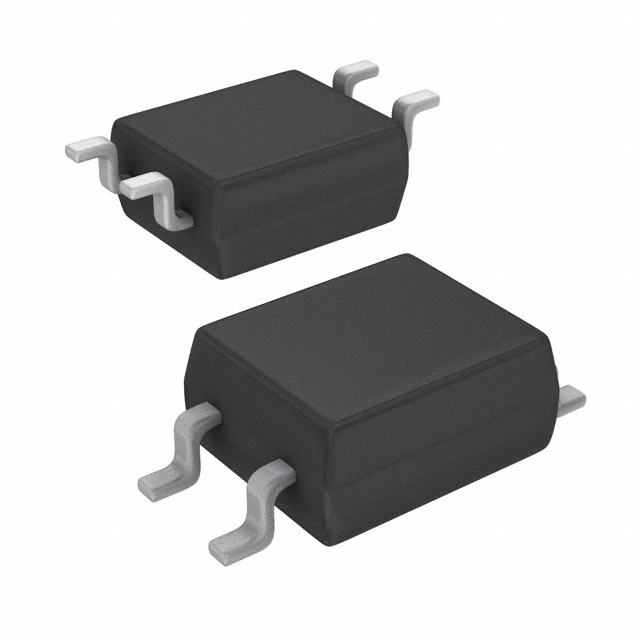

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TLP185
Manufacturer

Toshiba
ChipWorker Part#

CW42829237
Category

Optocoupler, Optoisolator
Package

SO-6
Description

도시바 SMD 타입 포토커플러, Supply voltage:DC 5V~48V
Documentation

Datasheet

TLP185 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TLP185 Specifications

Attribute	Attribute Value

Part Number	TLP185
Manufacturer	Toshiba
ChipWorker Part#	CW42829237
Category	Optocoupler, Optoisolator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	SO-6
Number of Channels	1 Channel
Number of Positions	4 Position
Forward Voltage	1.25 V
Rise Time	5 µs
Isolation Voltage	3750 Vrms
Output Voltage (Max)	80 V
Input Current (Min)	10 mA
Maximum Forward Voltage (Max)	1.4 V
Forward Current (Max)	50 mA
Fall Time	9 µs
Operating Temperature (Max)	110 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	200 mW
	expand all
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	PB free

Product Description

Office Machine
Programmable Controllers
AC Adapter
I/O Interface Board
The TOSHIBA mini flat coupler TLP185 is a small outline coupler, suitable for surface mount assembly. TLP185 consist of a photo transistor optically coupled to a gallium arsenide infrared emitting diode. Since TLP185 is smaller than DIP package, it’s suitable for high-density surface mounting applications such as programmable controllers
•Collector−emitter voltage: 80V (min)
• Current transfer ratio: 50% (min) Rank GB: 100% (min)
• Isolation voltage: 3750Vrms (min)
• Operation Temperature:-55 to 110 ˚C
•Safety Standards
