TLV2372IDR - TI

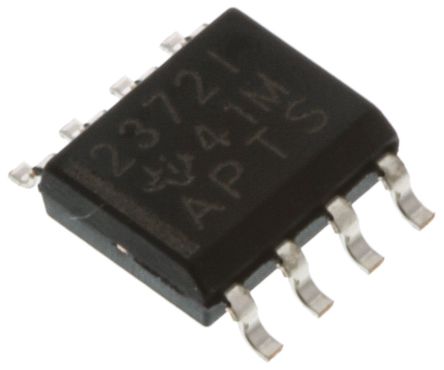

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TLV2372IDR
Manufacturer

TI
ChipWorker Part#

CW62920
Category

Operational Amplifier, OP Amp IC
Package

SOIC-8
Description

Low Power550-uA/Channel 3MHz RRIO Op Amp OP Amp Dual GP R-R I/O 8V/16V 8Pin SOIC T/R
Documentation

Datasheet

TLV2372IDR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TLV2372IDR Specifications

Attribute	Attribute Value

Part Number	TLV2372IDR
Manufacturer	TI
ChipWorker Part#	CW62920
Category	Operational Amplifier, OP Amp IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Output Current	8mA @5V
Supply Current	750 µA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Power Dissipation	710 mW
Common Mode Rejection Ratio	55 dB
Input Offset Drift	2.00 µV/K
Bandwidth	2.4 MHz
Slew Rate	2.40 V/μs
Gain Bandwidth Product	3 MHz
Input Offset Voltage	2 mV
Input Bias Current	1 pA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	3 MHz
Power Dissipation (Max)	710 mW
Minimum CMRR Range	55 dB
	expand all
Size-Length	4.9 mm
Size-Width	3.91 mm
Size-Height	1.58 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC

Product Description

description
The TLV237x single supply operational amplifiers provide rail-to-rail input and output capability. The TLV237x takes the minimum operating supply voltage down to 2.7 V over the extended industrial temperature range while adding the rail-to-rail output swing feature. The TLV237x also provides 3-MHz bandwidth from only 550 µA. The maximum recommended supply voltage is 16 V, which allows the devices to be operated from (±8 V supplies down to ±1.35 V) a variety of rechargeable cells.
Rail-To-Rail Input/Output
Wide Bandwidth...3 MHz
High Slew Rate. . . 2.4 V/µs
Supply Voltage Range. . . 2.7 V to 16 V
Supply Current. . . 550 µA/Channel
Low Power Shutdown Mode
IDD(SHDN)... 25 µA/Channel
Input Noise Voltage . . . 39 nV/√Hz
Input Bias Current...1 pA
Specified Temperature Range
−40°C to 125°C . . . Industrial Grade
Ultrasmall Packaging
5 or 6 Pin SOT-23 (TLV2370/1)
8 or 10 Pin MSOP (TLV2372/3)
