TM4C1294KCPDTI3 - TI

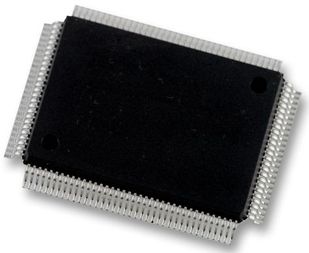

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TM4C1294KCPDTI3
Manufacturer

TI
ChipWorker Part#

CW3122672
Category

32-Bit Microcontroller IC
Package

TQFP-128
Description

MCU 32Bit Tiva C ARM Cortex M4F RISC 512KB Flash 1.2V/3.3V 128Pin TQFP
Documentation

Datasheet

TM4C1294KCPDTI3 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TM4C1294KCPDTI3 Specifications

Attribute	Attribute Value

Part Number	TM4C1294KCPDTI3
Manufacturer	TI
ChipWorker Part#	CW3122672
Category	32-Bit Microcontroller IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	128 Pin
Case/Package	TQFP-128
Frequency	120 MHz
Number of Positions	128 Position
Clock Speed	120 MHz, 120 MHz (max)
RAM Memory Size	256 KB
Number of Bits	32 Bit
Power Dissipation	904 mW
FLASH Memory Size	524288 B
Number of UARTs	8 UART
Number of ADCs	20 ADC
Number of Inputs and Outputs	90 Input IO
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	40 ℃
Power Dissipation (Max)	904 mW
Supply Voltage (Max)	1.32 V
Supply Voltage (Min)	1.14 V
	expand all
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15

Product Description

The TM4C1294KCPDTI3 is a 32-Microcontroller provide a high-performance ARM Cortex-M-based architecture with a broad set of integration capabilities and a strong ecosystem of software and development tools. Targeting performance and flexibility, the Tiva™ C series architecture offers a 120 MHz Cortex-M with FPU, a variety of integrated memories and multiple programmable GPIO. Tiva™ C series devices offer consumers compelling solutions by integrating application-specific peripherals and providing a comprehensive library of software tools which minimize board costs and design-cycle time. The Tiva™ C series microcontrollers are the leading choice in high-performance 32-bit applications. This microcontroller uses ARM"s Thumb®-compatible Thumb-2 instruction set to reduce memory requirements. This device is code-compatible to all members of the extensive Tiva™ C series, providing flexibility to fit precise needs.
ARM Cortex-M4F processor core - 120MHz operation, 150 DMIPS performance
Internal ROM loaded with TivaWare™ for C series software
Dedicated external peripheral interface (EPI) for peripherals and memory
Cyclical redundancy check (CRC) hardware
Support for four tamper inputs and configurable tamper event response
Eight Universal asynchronous receivers/transmitters (UARTs)
4 QSSI modules with Bi-, Quad- and advanced SSI support
10 I2C modules with four transmission speeds including high-speed mode
Two controller area network (CAN) 2.0 A/B controllers
10/100 Ethernet MAC
Ethernet PHY with IEEE 1588 PTP hardware support
USB 2.0 OTG/Host/Device with ULPI interface option and LPM support
ARM® PrimeCell® 32-channel Configurable Micro Direct Memory Access (µDMA) controller
Eight 16/32-bit General-purpose timer (GPTM) blocks
Two watchdog timers
Low-power battery-backed hibernation module
15 Physical general-purpose Input/output (GPIO) blocks
1 Pulse width modulator (PWM) module
1 Quadrature encoder interface (QEI) module
Two 12-bit ADC modules, each with a maximum sample rate of one million samples/second
