TMP302BDRLR - TI

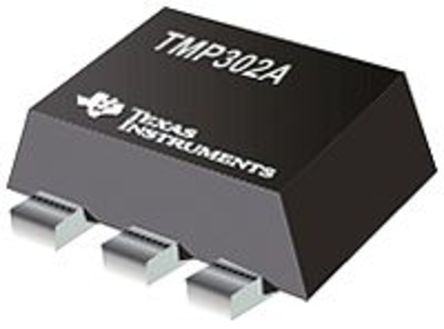

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TMP302BDRLR
Manufacturer

TI
ChipWorker Part#

CW18990466
Category

Temperature Sensor
Package

SOT-553-6
Description

Pin-Selectable Trip Point 1.4V-Capable Family of Temperature Switches 6-SOT -40℃ to 125℃
Documentation

Datasheet

TMP302BDRLR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TMP302BDRLR Specifications

Attribute	Attribute Value

Part Number	TMP302BDRLR
Manufacturer	TI
ChipWorker Part#	CW18990466
Category	Temperature Sensor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-553-6
Output Current	10 mA
Supply Current	8 µA
Quiescent Current	8.00 µA
Output Current (Max)	10 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±0.2 ℃
Supply Voltage	1.4V ~ 3.6V
Supply Voltage (Max)	3.6 VDC
Supply Voltage (Min)	1.4 VDC
	expand all
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

This TMP302BDRLR temperature and humidity sensor developed by Texas Instruments will double up ambient condition reader into one sensor. It has a digital output. This device has a minimum operating supply voltage of 1.4 V and a maximum of 3.6 V. This part has a minimum operating temperature of -55 °C and a maximum of 130 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components.
