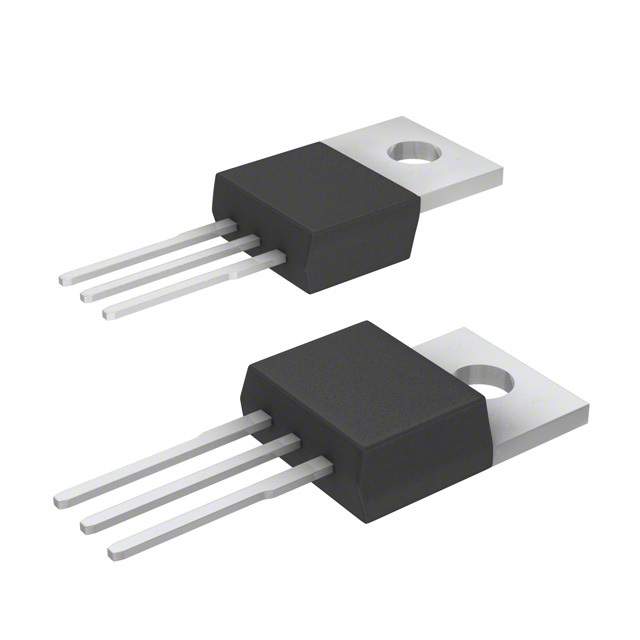

TOP222YN - Power Integrations

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TOP222YN
Manufacturer

Power Integrations
ChipWorker Part#

CW3761363
Category

AC to DC Converter, AC/DC Power Module
Package

TO-220-3
Description

AC to DC Switching Converter Off-Line Switcher 5V 110kHz 3Pin(3+Tab) TO-220
Documentation

Datasheet

TOP222YN Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TOP222YN Specifications

Attribute	Attribute Value

Part Number	TOP222YN
Manufacturer	Power Integrations
ChipWorker Part#	CW3761363
Category	AC to DC Converter, AC/DC Power Module
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Frequency	100 kHz
Supply Voltage (DC)	374V (max)
Power Rating	25 W
Number of Outputs	1 Output
Output Voltage	700 V
Breakdown Voltage	700 V
Supply Current	1.2 mA
Output Power	15 W
Switching Frequency	100 kHz
Duty Cycle	67 %
Output Current (Min)	0.05 A
Input Voltage	85V ~ 265V
	expand all
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Not For New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

Converter Offline Boost, Buck, Flyback, Forward Topology 100kHz TO-220-3
