TPA6111A2D - TI

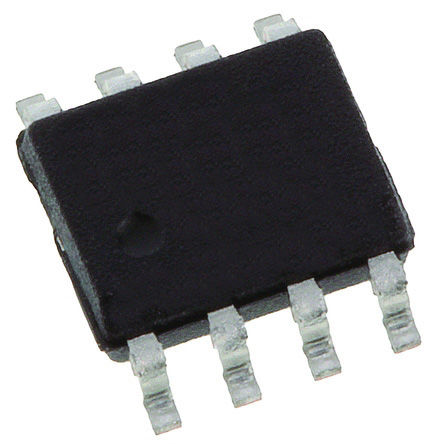

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TPA6111A2D
Manufacturer

TI
ChipWorker Part#

CW9221959
Category

Audio Amplifier IC
Package

SOIC-8
Description

TEXAS INSTRUMENTS TPA6111A2D Audio Power Amplifier, AB, 2Channel, 150mW, 2.5V to 5.5V, SOIC, 8Pins
Documentation

Datasheet

TPA6111A2D Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TPA6111A2D Specifications

Attribute	Attribute Value

Part Number	TPA6111A2D
Manufacturer	TI
ChipWorker Part#	CW9221959
Category	Audio Amplifier IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	5.50 V
Power Rating	150 mW
Supply Current	3.2 mA
Number of Channels	2 Channel
Number of Positions	8 Position
Power Dissipation	725 mW
Bandwidth	20 kHz
Output Power	150 mW
Input Offset Voltage	10 mV
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	725 mW
Supply Voltage	2.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.5 V
	expand all
Size-Length	4.9 mm
Size-Width	3.91 mm
Size-Height	1.58 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

The TPA6111A2D is a stereo Audio Power Amplifier for use with Notebook PCs and docking stations. Amplifier gain is externally configured by means of two resistors per input channel and does not require external compensation for settings of 0 to 20dB. THD+N, when driving a 16R load from 5V, is 0.03% at 1kHz and less than 1% across the audio band of 20Hz to 20kHz. For 32R loads, the THD+N is reduced to less than 0.02% at 1kHz and is less than 1% across the audio band of 20Hz to 20kHz. For 10kR loads, the THD+N performance is 0.005% at 1kHz and less than 0.5% across the audio band of 20Hz to 20kHz.
Pop reduction circuitry
Internal midrail generation
Thermal and short-circuit protection
Green product and no Sb/Br
