TPS73618DBVR - TI

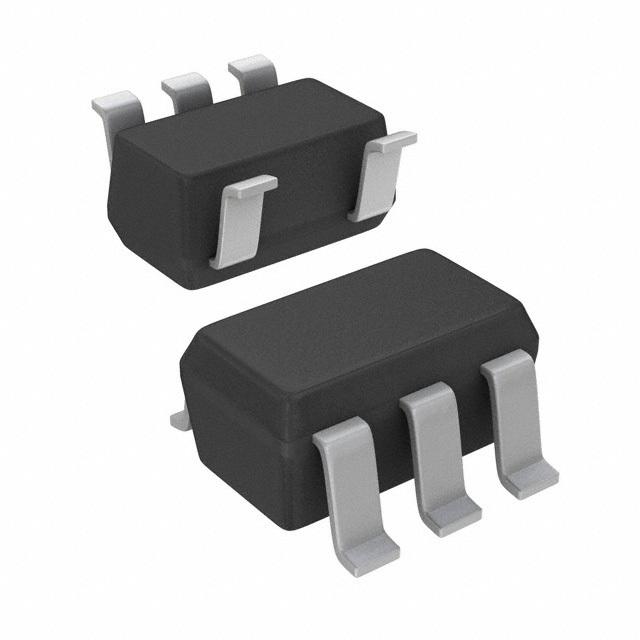

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TPS73618DBVR
Manufacturer

TI
ChipWorker Part#

CW8705008
Category

Voltage Regulator
Package

SOT-23-5
Description

Single Channel LDO Single Output LDO, 400mA, Fixed(1.8V), Cap free, Low Noise, Reverse Current Protection LDO Regulator Pos 1.8V 0.4A 5Pin SOT-23 T/R
Documentation

Datasheet

TPS73618DBVR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TPS73618DBVR Specifications

Attribute	Attribute Value

Part Number	TPS73618DBVR
Manufacturer	TI
ChipWorker Part#	CW8705008
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-23-5
Number of Outputs	1 Output
Output Voltage	1.8 V
Output Current	400 mA
Supply Current	550µA ~ 1mA
Number of Positions	5 Position
Power Dissipation	560 W
Quiescent Current	400 µA
Output Capacitor Type	Ceramic
voltage rating	75 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	5.5 V
Input Voltage (Min)	1.7 V
Output Voltage (Min)	1.8 V
Output Current (Max)	0.4 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±0.5 %
Input Voltage	≤5.5 V
	expand all
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

Control the voltage level of your circuit with this LDO TPS73618DBVR linear regulator from Texas Instruments. Its typical dropout voltage at current is 0.075@400mA V. It has an overall accuracy of ±0.5 %. This voltage regulation device"s single output can produce a current up to 0.4 A. Using the part will provide the power your application needs by requiring a voltage only of 1.7 V and not exceeding a voltage of 5.5 V. With a fixed output that has a voltage of 1.8 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of 0.002%/mA(Typ) and line regulation of 0.01%/V(Typ). Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. The maximum dropout voltage is 0.2@400mA V. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C.
