TPS73633DRBT - TI

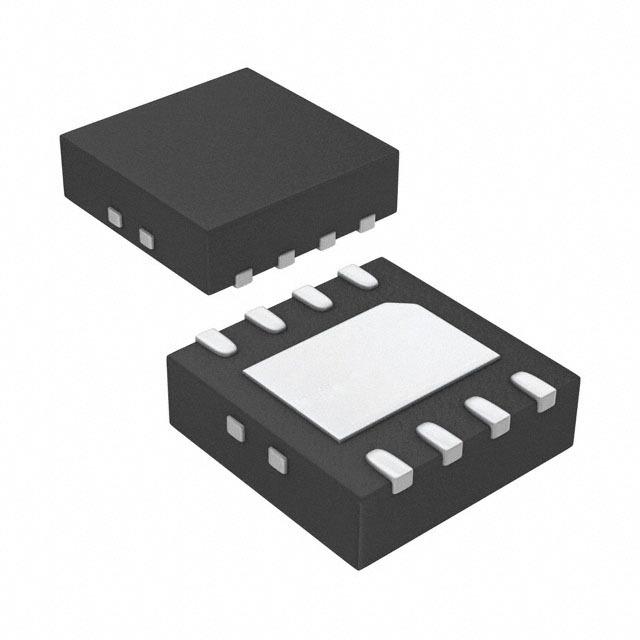

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TPS73633DRBT
Manufacturer

TI
ChipWorker Part#

CW21231736
Category

Voltage Regulator
Package

VDFN-8
Description

Single Channel LDO Single Output LDO, 400mA, Fixed (3.3V), Cap-Free, Low-Noise, Reverse Current Protection LDO Regulator Pos 3.3V 0.4A 8Pin VSON EP T/R
Documentation

Datasheet

TPS73633DRBT Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TPS73633DRBT Specifications

Attribute	Attribute Value

Part Number	TPS73633DRBT
Manufacturer	TI
ChipWorker Part#	CW21231736
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VDFN-8
Number of Outputs	1 Output
Output Voltage	3.3 V
Output Current	400 mA
Power Dissipation	2500 W
Quiescent Current	0.3 mA
Output Capacitor Type	Ceramic
voltage rating	0.075V @400mA
Number of Regulated Outputs	1 Output
Input Voltage (Max)	5.5 V
Input Voltage (Min)	1.7 V
Output Current (Max)	0.4 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±0.5 %
Input Voltage	≤5.5 V
	expand all
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

This LDO TPS73633DRBT linear regulator developed by Texas Instruments keeps the power stable! It has an overall accuracy of ±0.5 %. Its typical dropout voltage at current is 0.075@400mA V. This voltage regulation device"s single output can produce a current up to 0.4 A. It only needs a voltage of at least 1.7 V while not exceeding 5.5 V to effectively power your circuit. With a fixed output that has a voltage of 3.3 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 0.002%/mA(Typ) and line regulation of 0.01%/V(Typ). In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive. The maximum dropout voltage is 0.2@400mA V.
