TPS79318DBVT - TI

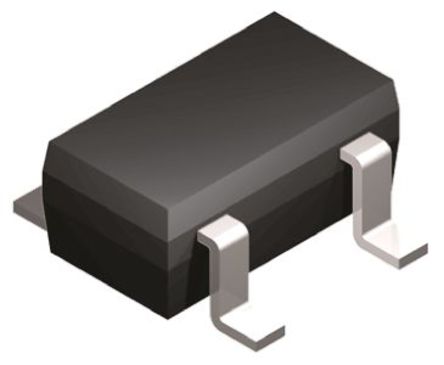

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TPS79318DBVT
Manufacturer

TI
ChipWorker Part#

CW13890736
Category

Voltage Regulator
Package

SOT-23-5
Description

Single Channel LDO Single Output LDO, 200mA, Fixed(1.8V), High PSRR, Low Noise LDO Regulator Pos 1.8V 0.2A 5Pin SOT-23 T/R
Documentation

Datasheet

TPS79318DBVT Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TPS79318DBVT Specifications

Attribute	Attribute Value

Part Number	TPS79318DBVT
Manufacturer	TI
ChipWorker Part#	CW13890736
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-23-5
Current Rating	200 mA
Power Rating	0.56 W
Number of Outputs	1 Output
Output Voltage	1.8 V
Output Current	200 mA
Supply Current	220 µA
Number of Positions	5 Position
Power Dissipation	0.56 W
Quiescent Current	0.17 mA
Output Capacitor Type	Ceramic
voltage rating	112 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.7 V
Output Voltage (Min)	1.8 V
Output Current (Max)	200 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	560 mW
Accuracy	2 %
Input Voltage	2.7V ~ 5.5V
	expand all
Size-Length	2.9 mm
Size-Width	1.6 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

The TPS79318DBVT is a 1.8V fixed output low-power low-dropout (LDO) Linear Regulator features high power-supply rejection ratio (PSRR), ultralow-noise, fast start-up and excellent line and load transient responses. The device is stable with a small 2.2µF ceramic capacitor on the output. The TPS793 family uses an advanced, proprietary BiCMOS fabrication process to yield extremely low-dropout (LDO) voltages. The device achieves fast start-up times while consuming very low quiescent current. Moreover, when the device is placed in standby mode, the supply current is reduced to less than 1µA. Applications with analog components that are noise-sensitive, such as portable RF electronics, benefit from the high PSRR and low-noise features as well as the fast response time.
70dB at 10kHz High PSRR
Fast start-up time (50µs)
Green product and no Sb/Br
