TS3DV421DGVR - TI

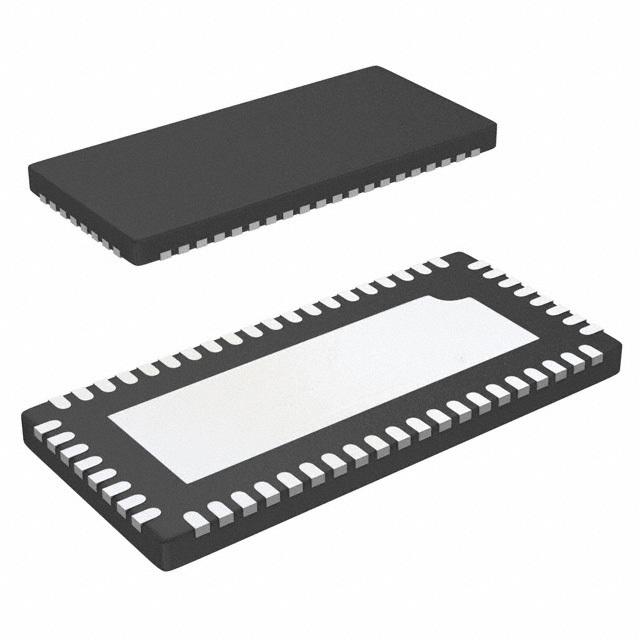

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TS3DV421DGVR
Manufacturer

TI
ChipWorker Part#

CW45228086
Category

Logic Control, Logic Gate IC
Package

TVSOP-48
Description

Multi-Channel Differential Switch/Multiplexer Targeting DVI/HDMI Applications 48-TVSOP -40℃ to 85℃
Documentation

Datasheet

TS3DV421DGVR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TS3DV421DGVR Specifications

Attribute	Attribute Value

Part Number	TS3DV421DGVR
Manufacturer	TI
ChipWorker Part#	CW45228086
Category	Logic Control, Logic Gate IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	TVSOP-48
Supply Voltage (DC)	1.50V (min)
Number of Outputs	8 Output
Supply Current	230 µA
Number of Channels	4 Channel
Propagation Delay Max (tpd)	250 ps
Bandwidth	1.9 GHz
Number of Inputs	16 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	1.5 V
	expand all
Size-Length	9.7 mm
Size-Width	4.4 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15

Product Description

Video Switch IC Serial DVI 1.0, HDMI 1.3 48-TVSOP Package
