TS3USB30RSWR - TI

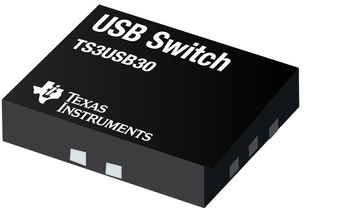

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TS3USB30RSWR
Manufacturer

TI
ChipWorker Part#

CW2702973
Category

Multiplexer IC
Package

UQFN-10
Description

USB Interface, High Speed 1:2 Mux/Demux, USB 2.0, 3V, 4.3V, UQFN, 10Pins
Documentation

Datasheet

TS3USB30RSWR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TS3USB30RSWR Specifications

Attribute	Attribute Value

Part Number	TS3USB30RSWR
Manufacturer	TI
ChipWorker Part#	CW2702973
Category	Multiplexer IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	UQFN-10
Supply Voltage (DC)	3.00V ~ 4.30V
Number of Outputs	2 Output
Supply Current	1 µA
Number of Channels	1 Channel
Data Rate	480 Mbps
Bandwidth	900 MHz
Number of Inputs	4 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	955 MHz
Supply Voltage (Max)	4.3 V
Supply Voltage (Min)	3 V
	expand all
Size-Length	1.85 mm
Size-Width	1.45 mm
Size-Height	0.5 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
HK STC License	NLR

Product Description

The TS3USB30 is a high-bandwidth switch specially designed for the switching of high-speed USB 2.0 signals in handset and consumer applications, such as cell phones, digital cameras, and notebooks with hubs or controllers with limited USB I/Os. The wide bandwidth (955 MHz) of this switch allows signals to pass with minimum edge and phase distortion. The device multiplexes differential outputs from a USB host device to one of two corresponding outputs. The switch is bidirectional and offers little or no attenuation of the high-speed signals at the outputs. It is designed for low bit-to-bit skew and high channel-to-channel noise isolation, and is compatible with various standards, such as high-speed USB 2.0 (480 Mbps).
