TSM2314CX ,MOSFET, MOSFET Transistor - Taiwan Semiconductor

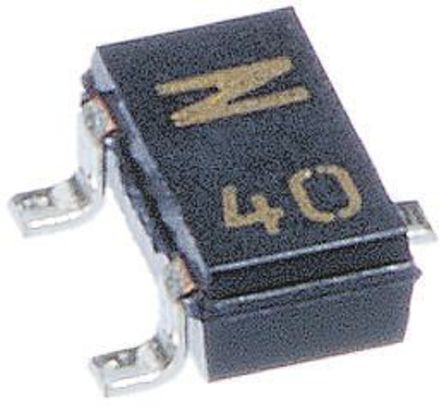

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

119 points

Part No

TSM2314CX
Manufacturer

Taiwan Semiconductor
ChipWorker Part#

CW8651159
Category

MOSFET, MOSFET Transistor
Package

SOT-23-3
Description

MOSFET Transistor, N Channel, 4.9A, 20V, 0.027Ω, 4.5V, 850mV
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 0.1

Buy TSM2314CX

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

TSM2314CX Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

TSM2314CX Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	TSM2314CX
Manufacturer	Taiwan Semiconductor
ChipWorker Part#	CW8651159
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Number of Channels	1 Channel
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.027 Ω
Polarity	N-Channel
Power Dissipation	1.25 W
Threshold Voltage	850 mV
Drain to Source Voltage (Vds)	20 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	expand all
Operating Temperature	-55℃ ~ 150℃
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Similar & Replacement Parts

Similar products

Product Description

The TSM2314CX is a N-channel MOSFET with advanced Trench process technology and ±12V gate source voltage.
