ULQ2003A ,BJT Transistor, BJT - ST Microelectronics

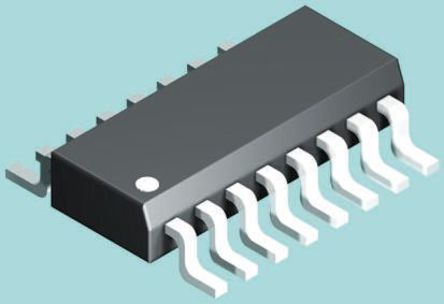

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

156 points

Part No

ULQ2003A
Manufacturer

ST Microelectronics
ChipWorker Part#

CW863757
Category

BJT Transistor, BJT
Package

DIP-16
Description

Trans Darlington NPN 50V 0.5A 16Pin PDIP Tube
Documentation

Datasheet
Ships from

Moscow
Наличие

25 pcs In Stock
Estimated Price

$ 0.06

Buy ULQ2003A

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

ULQ2003A Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

ULQ2003A Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	ULQ2003A
Manufacturer	ST Microelectronics
ChipWorker Part#	CW863757
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	DIP-16
Voltage Rating (DC)	50.0 V
Current Rating	500 mA
Output Voltage	50 V
Output Current	500 mA
Polarity	NPN
Input Capacitance	15.0 pF
Breakdown Voltage (Collector to Emitter)	50 V
hFE Min	1000 @350mA, 2V
DC Current Gain (hFE)	1000
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	30 V
	expand all
Size-Length	20 mm
Size-Width	7.1 mm
Size-Height	4.59 mm
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

Description
The ULQ2001, ULQ2003 and ULQ2004 are high voltage, high current Darlington arrays each containing seven open collector Darlington pairs with common emitters. Each channel rated at 500mA and can withstand peak currents of 600 mA. Suppression diodes are included for inductive load driving and the inputs are pinned opposite the outputs to simplify board layout.
Features
■ Seven Darlington per package
■ Extended temperature range: -40 to 105 °C
■ Output current 500 mA per driver (600 mA peak)
■ Output voltage 50 V
■ Automotive Grade product in SO16 package
■ Integrated suppression diodes for inductive loads
■ Outputs can be paralleled for higher current
■ TTL/CMOS/PMOS/DTL compatible inputs
■ Inputs pinned opposite outputs to simplify layout
