USBDF01W5 - ST Microelectronics

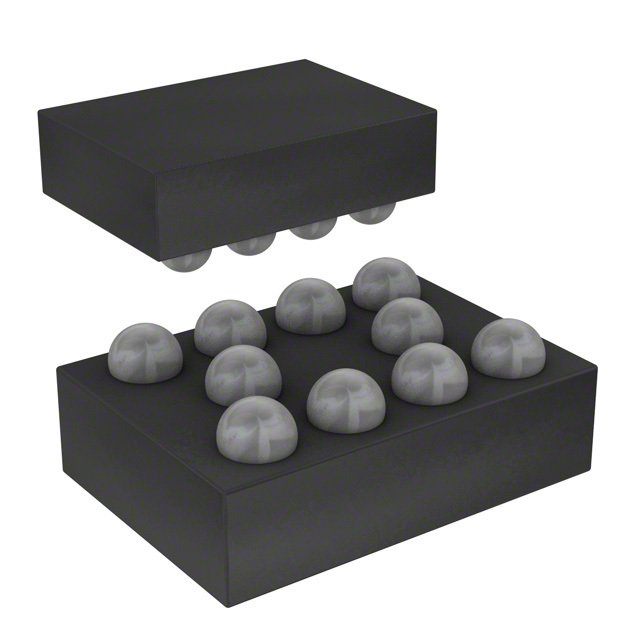

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoUSBDF01W5
-
ManufacturerST Microelectronics
-
ChipWorker Part#CW2304000
-
CategoryRFI Shielding
-
PackageSOT-323-5
-
DescriptionRC (Pi) EMI Filter 2nd Order Low Pass 2Channel R = 33Ω, C = 47pF 5-TSSOP, SC-70-5, SOT-353
-
DocumentationDatasheet
Payment Methods and Delivery
{{ estimate }}
USBDF01W5 Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
- |
{{outStock}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
- | ${{UpToFourDecimals(priceCalc,skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
{{ apiText }}{{ apiTime }}(UTC+8)
USBDF01W5 Specifications
| Attribute | Attribute Value |
|---|---|
| Part Number | USBDF01W5 |
| Manufacturer | ST Microelectronics |
| ChipWorker Part# | CW2304000 |
| Category | RFI Shielding |
| Documentation | Datasheet |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | SOT-323-5 |
| Capacitance | 47 pF |
| Number of Channels | 2 Channel |
| Number of Positions | 5 Position |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| expand all | |
| Size-Length | 1.4 mm |
| Size-Width | 2.2 mm |
| Size-Height | 1.1 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2014/06/16 |
| ECCN Code | EAR99 |
Product Description
- The USBDF01W5 is an EMI Filter and Line Termination for USB downstream ports. The USB specification requires USB downstream ports to be terminated with pull-down resistors from the D+ and D- lines to ground. On the implementation of USB systems, the radiated and conducted EMI should be kept within the required levels as stated by the FCC regulations. In addition to the requirements of termination and EMC compatibility, the computing devices are required to be tested for ESD susceptibility. The USBDFxxW5 provides the recommended line termination while implementing a low pass filter to limit EMI levels and providing ESD protection which exceeds IEC 61000-4-2 level 4 standard.
- Monolithic device with recommended line termination for USB downstream ports
- Integrated Rt series termination and Ct bypassing capacitors
- EMI / RFI noise suppression
- Required line termination for USB downstream ports
- IPAD™ technology provides high flexibility in the design of high density boards
- Tailored to meet USB 1.1 standard
