W7100A - WIZnet

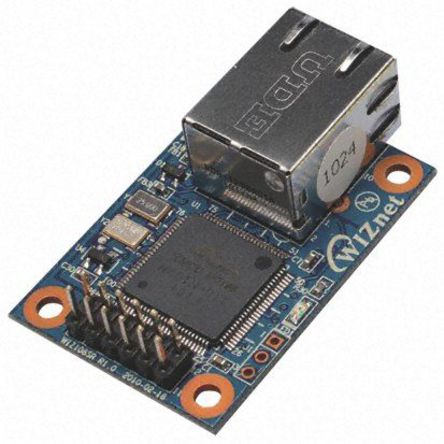

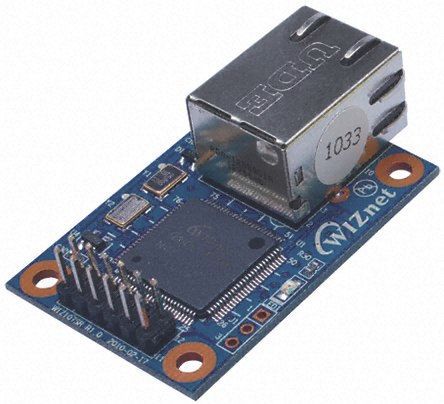

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

W7100A
Manufacturer

WIZnet
ChipWorker Part#

CW40758804
Category

Microcontroller, MCU IC
Package

LQFP-100
Description

8051 - Microcontroller IC 8Bit 25MHz 64KB (64K x 8) FLASH 100-LQFP (14x14)
Documentation

Datasheet

W7100A Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

W7100A Specifications

Attribute	Attribute Value

Part Number	W7100A
Manufacturer	WIZnet
ChipWorker Part#	CW40758804
Category	Microcontroller, MCU IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	100 Pin
Case/Package	LQFP-100
Number of Channels	8 Channel
RAM Memory Size	64K x 8
Operating Temperature (Max)	80 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	3.3 VDC
	expand all
Size-Length	14.1 mm
Size-Width	14.1 mm
Size-Height	1.45 mm
Operating Temperature	-40℃ ~ 80℃ (TA)
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
