XBTN401 - Schneider Electric

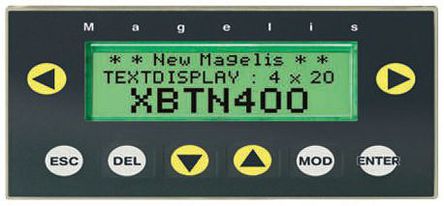

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

XBTN401
Manufacturer

Schneider Electric
ChipWorker Part#

CW207441459
Description

Electric XBTN Series Backlit LCD HMI Terminal, 2Port, 24V dc Supply
Documentation

Datasheet

XBTN401 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

XBTN401 Specifications

Attribute	Attribute Value

Part Number	XBTN401
Manufacturer	Schneider Electric
ChipWorker Part#	CW207441459
Documentation	Datasheet
Supply Voltage (DC)	24.0V (max)
Operating Temperature (Max)	55 ℃
Operating Temperature (Min)	0 ℃
Voltage Rating	24 VDC
Supply Voltage	24 VDC
Supply Voltage (Max)	24 V
	expand all
Size-Length	119.4 mm
Size-Width	74 mm
Operating Temperature	0℃ ~ 55℃
Product Lifecycle Status	Active
RoHS	RoHS Compliant

Product Description

Compact, easy-to-install and configure, the Magelis® display units breaking new ground with its compatibility with other Schneider Electric components and its ability to adapt to the design of the machine and the profile of the operator.
**Features:**
* Totally Compatible with TWIDO® Controllers; Tailor Made for Small Control Systems
* No Power Supply Required for Use with TWIDO® Controllers
* Direct Access to Variables Configured in TWIDO® Soft Software
* Modbus or Unitelway Communication Software Compatibility
* Easy-to-Mount on Machine Frame; No Tools or Enclosure Required
* Includes Four Customizable Function Keys
* High Visibility Display
**Specifications:**
* Back-Lit LCD Display
* Keypad with Eight Keys (4 Customizable)
* Communication Ports: (1) RS232C, (1) RS485
* 512 kB Flash Memory
