AYF333135 - Panasonic

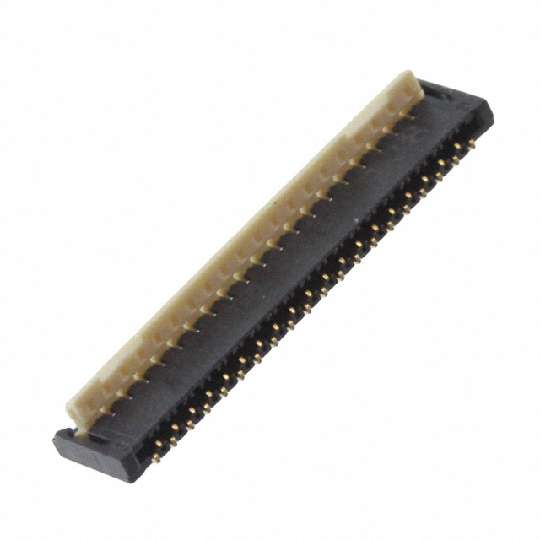

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AYF333135
Manufacturer

Panasonic
ChipWorker Part#

CW40357863
Category

Connector
Description

Conn FPC Connector SKT 31POS 0.3mm Solder RA SMD T/R
Documentation

Datasheet

AYF333135 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AYF333135 Specifications

Attribute	Attribute Value

Part Number	AYF333135
Manufacturer	Panasonic
ChipWorker Part#	CW40357863
Category	Connector
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	31 Pin
Number of Contacts	31 Contact
Current Rating	0.2A/触头
Insulation Resistance	1000 MΩ
Number of Rows	1 Row
Number of Positions	31 Position
Number of Mating Cycles	20 Cycle
Current Rating (Max)	0.2A/触头
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	50 V
Maximum Contact Resistance (Max)	100 mΩ
	expand all
Size-Height	0.9 mm
Contact Material	Copper Alloy
Operating Temperature	-55℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
HK STC License	NLR

Product Description

31 Position FPC Connector Contacts, Top and Bottom 0.012" (0.30mm) Surface Mount, Right Angle
